Yes, most Haldex equipped cars need periodic servicing: drain the unit, check and clean the pump, replace the filter and oil, then carry out a pump or ECU learn. Skipping this leads to slipping, warning lights and, eventually, a failed pump or clutch pack. The right parts matter as much as the steps, and SKU references from a Haldex specialist help you avoid ordering the wrong generation of components.
TL;DR:
- Servicing Haldex systems typically requires checking fluid condition, inspecting the pump, and performing a pump or ECU learn to prevent slipping and warning lights.
- Many owners schedule fluid changes between 30,000 to 50,000 kilometers, but heavy use or poor conditions often justify earlier servicing based on fluid appearance.
- Using the correct parts for your Haldex generation is crucial, with specific fluid, filters, and pumps suited to each version, verified through VIN checks.
- Proper flow checks and a pump learn are essential steps that most DIY guides overlook, significantly reducing the risk of failure after service.
- Signs of failure include whining noises, fluid leaks, slipping, and warning lights, with electrical or pump issues often causing persistent problems despite fluid changes.
Table of Contents
- How often should you service a Haldex coupling?
- Parts and tools, matched to your Haldex generation
- Step-by-step Haldex service procedure
- Common Haldex faults and how to spot them
- Fixing problems that show up during or after the service
- Where the parts and guidance in this walkthrough come from
- What this guide gets right that most advice misses
- Sourcing the parts used in this guide
- Sources
- FAQ
How often should you service a Haldex coupling?
Factory guidance for most VW and Audi Haldex systems points to servicing somewhere in the 30,000 to 50,000 kilometre range, though owners on forums often report scheduling it earlier, particularly on cars used hard or in poor conditions. Heavy towing, frequent off-road use, track days and contaminated fluid all shorten the realistic interval, regardless of what the dashboard says.
A practical oil-change guide covering VW and Audi systems recommends treating fluid condition, not just mileage, as the trigger for a service. If the oil looks dark or smells burnt, that is a stronger signal than a date on a sticker.
Community feedback suggests many owners service their Haldex unit every 30,000 to 50,000 kilometres, a range reported in owner discussion threads rather than a single factory figure, which means your own driving pattern should guide the final call.
A DIY service typically needs an afternoon on a lift or axle stands, with most of that time spent on draining, pump inspection and refill rather than the refit itself. A workshop visit costs more in labour but saves the hassle of sourcing a fill pump and scan tool.
- Book professional help immediately if the AWD warning light stays on after a reset attempt.
- Treat frequent off-road or towing use as a reason to service earlier than the general interval.
- Dark or gritty fluid on inspection means the unit needs attention regardless of mileage.
Parts and tools, matched to your Haldex generation
Generation identification comes first. Early units use different drain and fill points, and some generations have no replaceable filter at all, so fitting the wrong kit wastes money and time. Checking your VIN and cross-referencing it against generation-specific parts pages avoids most of these mistakes.

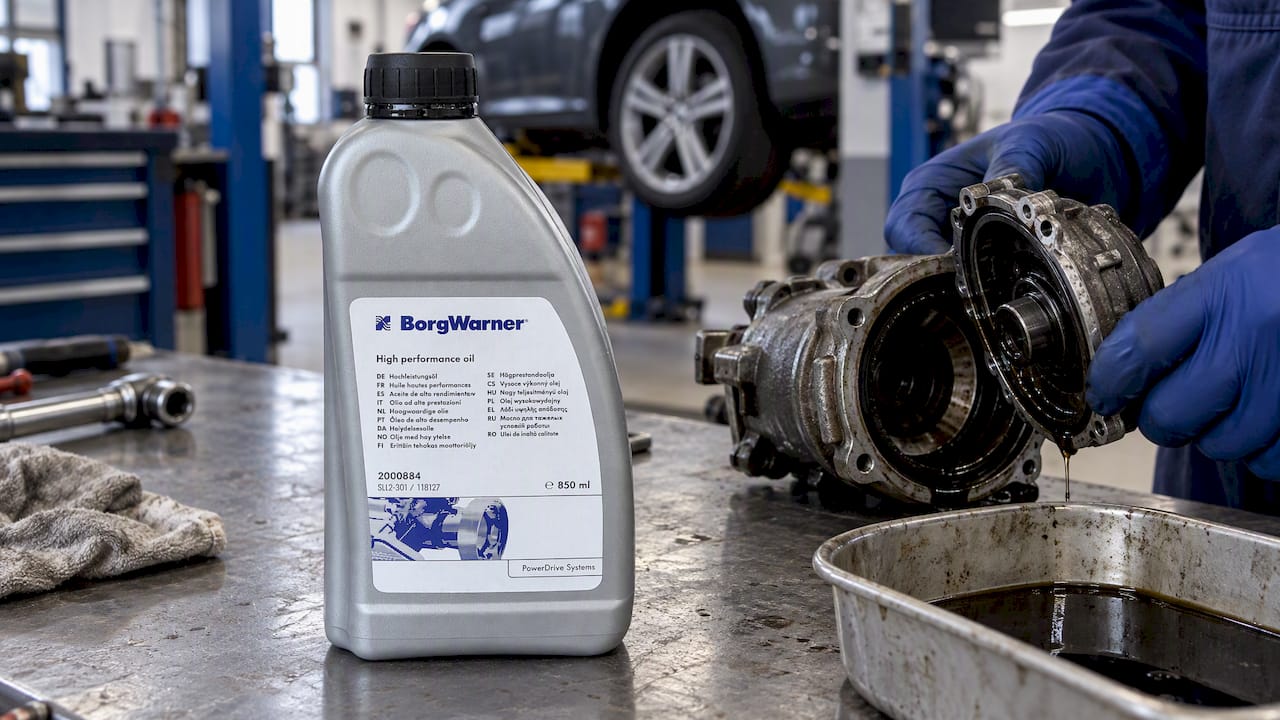

For the fluid itself, the BorgWarner 850ml high performance oil (G060175A2) is commonly referenced for 2nd to 5th generation units and is the oil most DIY guides build their refill steps around. On 5th generation applications shared with some Audi and Porsche platforms, the Haldex oil pump 9P1906271 is the relevant pump reference if yours shows weak flow or won’t prime. Where the clutch pack itself is worn, GEN4 and GEN5 friction plates (set of 10 discs, part 106792) are the standard consumable.
- Fill pump or syringe kit sized for Haldex refill volumes.
- Torque wrench for drain and fill plugs plus pump mounting bolts.
- Jack stands or a lift, plus wheel chocks for a level, secure platform.
- A scan tool or VCDS capable of running a pump learn after the service.
The VW Haldex service guide and Audi AWD parts list both map filters, seals and pumps to specific model years, which is worth checking before you place an order.
Step-by-step Haldex service procedure
Before touching anything, confirm your generation from the VIN, park on level ground and support the car properly on axle stands rather than a jack alone. Lay out every part and tool first, because a mid-job parts run usually means draining fluid twice.
- Support and identify: lift the car, confirm Haldex generation, and locate the drain and fill plugs for your specific unit.
- Drain: remove the drain plug and let the old fluid fully empty before refitting it, noting the fluid’s colour and smell as a condition check.

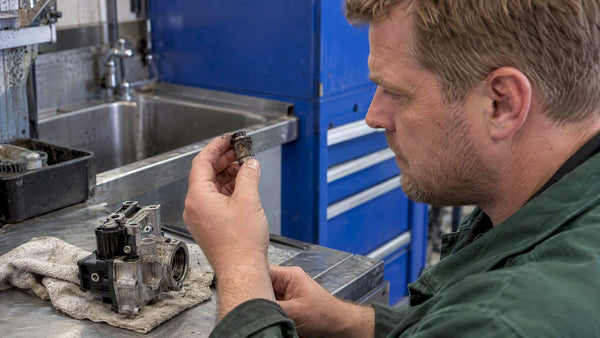

- Inspect and clean the pump: remove the pump, check for debris or a seized rotor, and test flow before deciding whether cleaning is enough or replacement is needed, as the EC Tuning service guide outlines for VW and Audi systems.
- Replace filter and seals: where your generation has a replaceable filter, fit the new one along with fresh seals, torquing fasteners to the figures given for your model.
- Refill: pump in BorgWarner G060175A2 oil to the correct volume for your generation, avoiding overfill, which can cause the same symptoms as a worn pump.
- Bleed and learn: run a pump prime and perform the pump or ECU learn using a scan tool such as VCDS, since a drive-learn alone does not always reset adaptation values fully.
- Final checks: inspect for leaks at the drain plug and pump housing, clear any stored fault codes, then take the car on a short road test checking for AWD warning lights or unusual noise.
Pro Tip: Keep the old fluid in a clear container next to the new oil. Comparing colour and smell side by side tells you more about wear than either sample does alone.
Common Haldex faults and how to spot them
A failing Haldex system rarely announces itself quietly. Watch for a whining or grinding noise from the rear of the car, an AWD warning lamp, perceptible slipping under acceleration, or visible fluid leaks around the coupling housing.
Before stripping anything down, a few checks can narrow the cause. Testing pump electrical connections for corrosion, checking fluid level and condition, and pulling stored fault codes with a scan tool all help decide whether this is a service job or something more serious.
- A whining noise under load often points to pump wear or low fluid rather than the clutch pack itself.
- An AWD warning lamp combined with stored pump-circuit codes usually means electrical or pump failure.
- Persistent slipping after a fresh fluid service often means the friction plates themselves need replacing.
- Visible leaks at the housing seam point to a seal failure rather than a fluid problem.
The common AWD coupling problems checklist and the broader Haldex differential explainer both expand on how to separate pump, clutch and electrical faults before you commit to parts.
Fixing problems that show up during or after the service
A blocked or sluggish pump is the most common snag mid-service. Flush it with fresh fluid and check for steady flow before refitting. If flow stays weak after cleaning, replacement is the more reliable fix than repeated cleaning attempts.
Persistent AWD faults after refill often come down to an incomplete pump learn rather than a mechanical problem, so repeating the learn procedure with a scan tool before assuming the worst is sensible. Faults that return after two or three learn attempts usually mean the pump or clutch pack itself needs replacing rather than another adaptation cycle.
- Always use the oil specification stated for your generation. Mixing an incompatible fluid is a common cause of early pump wear.
- Avoid unbranded filter kits that do not state generation compatibility, since a loose fit often causes the leaks owners mistake for seal failure.
Pro Tip: If the AWD light returns within a few days of the service, recheck the learn procedure before you start suspecting the pump. A missed learn step is a far more common cause than a faulty part.
Where the parts and guidance in this walkthrough come from
Service parts mapped by generation and vehicle brand, including Audi, VW, Ford and Land Rover, with product pages that state fitment clearly rather than leaving it to guesswork, are available. The VW Haldex service guide and Audi Haldex service guide set out the same interval and procedural logic used above.
Before ordering, confirm your VIN against the generation listed on the product page, since the same part number rarely fits across every generation. Checking fitment at this stage avoids a return and a delayed service.
What this guide gets right that most advice misses
Most Haldex advice treats the service as a single fluid change and stops there. The pump is usually the weak point, not the oil, and a service that skips a proper flow check on the pump is only half finished. Owners who replace fluid on schedule but never inspect the pump are often surprised when the AWD light returns within a few months.
The other gap is the learn step. Plenty of DIY guides treat a drive cycle as good enough to reset adaptation values, but a scan tool based pump learn is more reliable and takes a fraction of the time. If you own a VCDS cable or similar, use it rather than hoping a short drive resets everything.
Prioritise fluid condition over mileage, inspect the pump every time you drain the unit, and treat the learn procedure as mandatory rather than optional. Get those three right and most Haldex failures become preventable rather than inevitable.
— Mindaugas
Sourcing the parts used in this guide
Buying the right part for your generation matters more than price when it comes to Haldex servicing. HaldexParts lists BorgWarner G060175A2 oil, GEN4/GEN5 friction plates and the 5th generation oil pump with clear fitment notes, and orders over £150 ship free.
- Confirm your VIN and Haldex generation before adding anything to your basket.
- Double-check the part number against your model year on the product page.
- Consider adding a new air filter, such as the AEM Dryflow filter for Audi A4 1.8T, while the car is already up on stands.
Browse the full range of pumps, oils, filters and service kits to put together everything this guide covers in one order.
FAQ
How much does a Haldex service cost?
Cost depends on whether you do it yourself or book a workshop, with DIY limited mainly to parts such as oil, filter and seals, while a workshop adds labour on top. HaldexParts offers free shipping on orders over £150, which can offset the cost of a full parts kit for a DIY service.
How often should a Haldex system be serviced?
Many owners service their Haldex coupling every 30,000 to 50,000 kilometres, a range drawn from owner community feedback rather than a single fixed factory figure. Heavy use, towing or off-road driving are all reasons to service nearer the lower end of that range.
What are the signs of Haldex failure?
Typical warning signs include an AWD warning lamp, a whining or grinding noise from the rear of the car, slipping under acceleration and visible fluid leaks at the coupling housing. Persistent faults after a fresh service often point to the pump or clutch pack rather than the fluid itself.
What is a Haldex coupling?
A Haldex coupling is the hydraulic clutch pack system used to send drive to the rear wheels on many VW, Audi and related all-wheel-drive platforms. It relies on a pump, fluid and a clutch pack that all need periodic servicing to keep engaging smoothly.
