The most damaging Haldex service mistakes are using the wrong fluid, topping the wrong chamber, and ignoring a clogged filter screen. If you have just finished a service and see warning lights, hear clunking, or notice reduced traction, stop driving, check the fluid level and colour, and run an engagement test before going any further.
TL;DR:
- Using the wrong fluid type, such as generic automatic transmission fluid instead of OEM-specific oil, can cause clutch slippage and early wear in the Haldex system.
- Topping up or filling the wrong chamber or guessing fluid level instead of measuring to the correct mark can lead to pressure issues, clutch damage, or engagement faults.
- Failing to inspect or replace the filter screen during service can starve the pump, resulting in intermittent traction loss or engagement problems.
- Neglecting electronic checks, connector integrity, and ECU reset procedures after service may trigger warning lights or false fault codes.
- Service intervals vary by generation, with Gen1, Gen2, and Gen4 units needing attention every 20,000 to 30,000 miles, and Gen5 units more frequently at around 10,000 miles.
Table of Contents
- Common Haldex service mistakes ranked by frequency and severity
- Fluid selection errors and how wrong fluid damages the system
- Filter, pump and mechanical errors: what to inspect and replace
- Draining, refilling and verifying the job is right
- Electronic and diagnostic mistakes after servicing
- When to hire a professional: costs, time and risk assessment
- Preventive maintenance checklist and service intervals by generation
- Why you can trust these recommendations
- Differences in Haldex systems across vehicle makes and models
- Common myths about Haldex servicing
- Shop-tech perspective: the one rule that matters
- Getting the right parts for the job
- Curated links for further reading
- FAQ
Common Haldex service mistakes ranked by frequency and severity
Most Haldex problems trace back to a handful of repeated errors. Knowing which one matches your symptoms saves hours of guesswork and stops a small mistake becoming a rebuilt pump.
- Wrong fluid type. Generic automatic transmission fluid or an unapproved substitute is poured in because it looks similar or is cheaper. It happens most often when a shop or owner assumes “gear oil is gear oil.” The immediate risk is clutch pack slippage and accelerated wear, since Haldex fluid is formulated for the friction behaviour the clutch pack needs, unlike generic ATF. Drain it and refill with the correct specification fluid as soon as possible.
- Topping the wrong chamber. On several platforms the differential and the Haldex unit sit close together, and a rushed job tops up the diff while leaving the Haldex gears dry. This is a procedural slip rather than a parts problem, usually caused by skipping the workshop manual. Left unchecked, the Haldred mechanical gears run dry and wear rapidly, so the fix is to drain both chambers and refill each through its correct port.
- Overfilled or underfilled Haldex unit. Guessing the fill level instead of measuring it to the specified mark causes either pressure build-up or fluid starvation. It happens because the fill hole is awkward to reach on some models, tempting owners to “eyeball it.” Both directions of error accelerate clutch and pump wear, so always fill to the level plug, not by volume alone.
- Neglected filter or pump. Skipping the filter screen during a fluid service, or reusing a tired pump, restarves the clutch pack of pressure. It happens because the filter is hidden and easy to miss on a fluid-only change. The risk is engagement faults and intermittent traction loss, corrected by inspecting and replacing the screen every service.
- Procedural shortcuts. Skipping the bleed step, reusing old seals, or under-torquing the sump bolts are common when a job is rushed to beat daylight. These slips cause leaks, air entrapment, or repeat comebacks, and the fix is simply following the full sequence rather than the quick version.
- Electrical disturbance. Unplugging a connector to get better access and forgetting to check it, or disturbing a wiring loom near the pump, can mimic a full Haldex failure. This happens during pump or filter jobs where space is tight. The risk is chasing a phantom mechanical fault when the real issue is a loose plug, so always check connectors before assuming the worst.
Fluid selection errors and how wrong fluid damages the system
Haldex clutch packs rely on a fluid with specific friction modifiers to grip and release cleanly under load. Automatic transmission fluid and generic gear oils are formulated for different friction coefficients entirely, and using them in place of OEM Haldex oil has been reported repeatedly to cause clutch slippage and early wear compared with the correct specification.
Healthy Haldex fluid is typically amber or light gold. Dark brown or black fluid with a burnt smell signals that the service is overdue and the clutch material may already be degrading. A few checks help you judge fluid condition before committing to a full service:
- Check colour against a fresh sample: cloudy or near-black fluid means it should have been changed already.
- Smell for a burnt or acrid note, which points to clutch pack heat damage rather than normal ageing.
- Feel for grittiness between fingers, a sign of metal or clutch material contamination.
- Note any hesitation or shudder on tight turns at low speed, which often follows degraded fluid before a warning light appears.
A full flush is preferable to a partial change whenever the fluid shows contamination or has gone well past its interval, since a partial top-up leaves worn material circulating. Avoid additive-based “boosters” marketed as friction modifiers unless the vehicle manufacturer specifically approves them for Haldex use: they are designed for different clutch systems and can interfere with engagement behaviour rather than improve it.
One reliable upgrade path is fitting an OEM-spec or manufacturer-approved higher-performance oil rather than a generic equivalent, which supports longevity in AWD systems under repeated hard engagement.

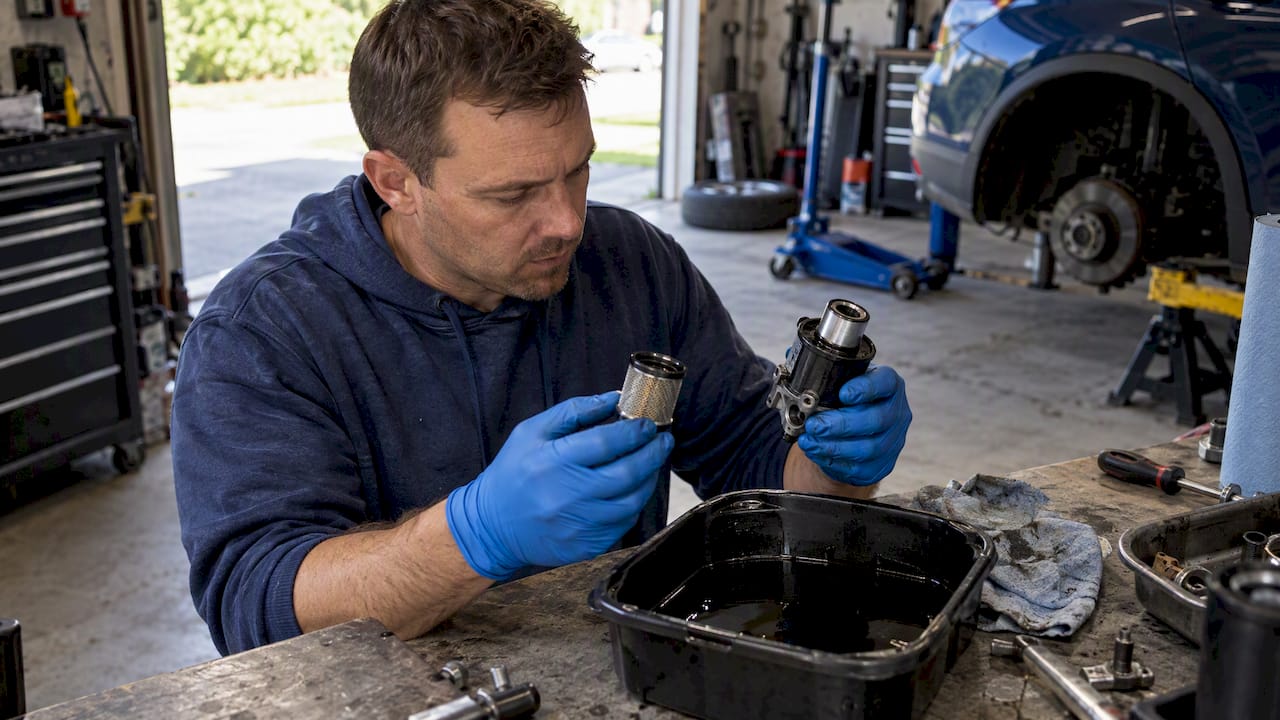

Filter, pump and mechanical errors: what to inspect and replace
A fluid change alone does not fix a Haldex that is losing pressure. The filter screen and pump condition decide whether the clutch pack gets the flow it needs, and both are easy to skip when you are focused on getting the fluid back in.
Inspect the filter screen every time the unit is opened, not just when a fault appears. A clogged screen commonly reduces pump flow, and a fully blocked screen can starve the pump enough to trigger engagement faults even with fresh fluid in the system. If the screen shows visible debris, metal flecks, or is simply original after years of service, replacement is not optional: reusing it defeats the point of the service.
Pump wear shows up as reduced pressure, intermittent engagement, or a whining noise under load. Reassembly is where most DIY pump jobs go wrong, through missing O-rings or under-torqued fasteners that lead to leaks and contamination later.
Keep these on hand before starting any pump or filter job:
- A fresh filter screen matched to your Haldex generation, never the old one reused “to save a few pounds”.
- New O-rings and seals for every joint you open, since reused seals are a leading cause of comeback leaks.
- Pump nose components for first and second generation units, covered in these pump nose replacement tips.
- Connector plugs for second, third and fourth generation pumps, detailed in this connector plug replacement guide.
Pro Tip: Torque sump and pump bolts to the exact factory figure rather than “snug”, since over-tightening warps the sealing surface just as reliably as leaving it loose.
Draining, refilling and verifying the job is right
The sequence matters as much as the parts. Skipping a step or doing them out of order is how a straightforward fluid change turns into a comeback.
- Drain the Haldex unit fully through its dedicated drain plug, keeping it separate from any differential drain on the same vehicle.
- Remove the filter screen, inspect it, and replace it rather than clean and reuse it if there is any doubt.
- Fit new seals and O-rings on every surface disturbed during the drain, since reused seals are a common source of post-service leaks.
- Refill through the correct fill port to the specified level mark, never by estimating a volume, and double-check you are filling the Haldex chamber and not the adjacent differential.
- Bleed the system as specified for your generation to clear trapped air, which otherwise mimics low fluid on first start-up.
- Run the vehicle and check for leaks at every disturbed joint before taking it on the road.
Overfill shows up as fluid weeping from the breather or fill plug shortly after the first drive, while air entrapment shows up as a spongy or delayed engagement that clears after a short drive once air works its way out. If either symptom appears, recheck the level against the specified mark rather than assuming the part is faulty.
Once refilled, run a simple engagement test on a low-grip surface such as loose gravel or a wet car park at low speed: gentle wheel spin should bring in drive within a second or two. If it does not, treat that as a signal to check your work before driving further, a step covered in more depth in this guide to a Haldex not engaging after service.

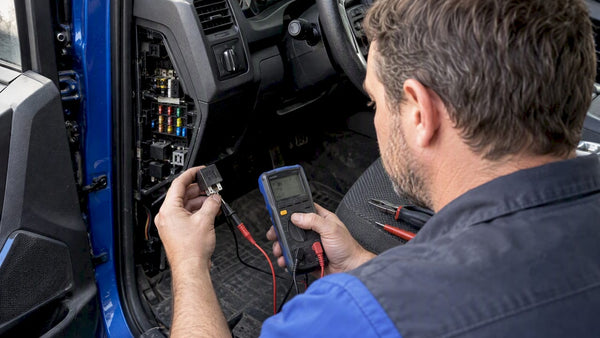

Electronic and diagnostic mistakes after servicing
A mechanically perfect service can still throw warning lights if the electronic side is ignored. Scanning for codes after any Haldex work, not just when a light appears, catches problems before they cost you a second trip.
- Scan for AWD-specific codes immediately after the service rather than waiting for a warning light to appear on its own.
- Treat a control-module mismatch code as a wiring or coding issue first, not a mechanical failure: reference codes such as 01224 control module mismatch point to an adaptation or connector problem rather than a worn clutch pack.
- Check every connector you touched during the job before assuming the Haldex unit itself has failed, since a loose or unplugged sensor can mimic a full system fault.
- Clear codes only after confirming the underlying cause, since clearing without investigating hides a fault that will return.
- Run a pump-activation test through diagnostic software where available, or listen and feel for pump engagement manually if you lack access to a scan tool.
Some vehicles require an ECU reset or adaptation reset after a Haldex service, even when the mechanical work is correct, because the control unit needs to relearn engagement parameters. Skipping this step is a common reason a technically sound service still throws a warning light on the first drive.
When to hire a professional: costs, time and risk assessment
DIY servicing makes sense for a confident owner with the right tools, but some jobs are better handed to a shop. Recognising the line before you are committed saves both money and a tow.
- A straightforward fluid and filter service typically takes an experienced DIYer a few hours on a lift or ramps, longer on the first attempt without one.
- A pump or seal replacement adds meaningfully to that time, particularly on tight engine bay layouts where access is limited.
- Persistent leaks after reassembly, a pump that will not build pressure, or repeated warning lights after two service attempts are signs the job needs a shop’s diagnostic equipment.
- Stripped threads, a warped sump surface, or a damaged pump housing from incorrect torque are mechanical damage that a DIY retry will not fix.
- Later generation units, particularly Gen5, use more integrated electronics and tighter fitment tolerances, which raises the complexity and the cost of getting it wrong.
If you are unsure whether a warning light reflects a real fault or a simple adaptation issue, a 4WD light diagnostics resource is a useful reference before booking a shop visit, and it can help you describe the symptom accurately when you do.
Preventive maintenance checklist and service intervals by generation
Most of the mistakes above are avoided entirely by sticking to the right interval and keeping the right parts in stock before you start. Service intervals vary by generation, with Gen1, Gen2 and Gen4 units typically serviced every 20,000 to 30,000 miles and Gen5 units needing attention more frequently, around every 10,000 miles, though you should always check your specific vehicle manual for confirmation.
- Replace the filter screen at every fluid service regardless of how clean it looks.
- Keep O-rings, seals and connector plugs in stock before starting, not ordered after you find the fault.
- Record the part numbers used each service, since Haldex pumps have limited interchangeability across generations.
- Check for leaks and listen for unusual noise on the drive home after every service, not just weeks later.
| Generation | Typical interval | Key parts to have ready |
|---|---|---|
| Gen1/Gen2 | 20,000 to 30,000 miles | Filter screen, pump nose parts, O-rings |
| Gen4 | 20,000 to 30,000 miles | Filter screen, connector plugs, O-rings |
| Gen5 | Around 10,000 miles | Filter screen, matched pump part number, seals |
Why you can trust these recommendations
These recommendations come from Mindaugas, who has written a series of technical Haldex guides covering diagnostics, fluid selection and generation-specific service procedures. The aim throughout has been practical accuracy: what actually goes wrong on a driveway service, not theoretical best practice.
Specialists in pumps, oils, filters and complete service kits sourced for specific Haldex generations and vehicle brands, rather than one-size-fits-all parts. Every mistake covered above maps to a real product decision: the pump nose components referenced in the mechanical section come from the pump nose replacement guide, the connector plugs from the connector plug set, and Gen5 pump fitment from the 0D4906271A pump listing for Audi R8 applications. Matching the part number to your exact generation, rather than assuming compatibility, is the single biggest factor in whether a DIY repair lasts.
Differences in Haldex systems across vehicle makes and models
Haldex units are shared technology across several manufacturers, but the fitment and service approach differ enough that a generic procedure can lead you wrong. Audi, VW, Ford, Land Rover, Volvo, Škoda, Seat, Opel, Saab and Vauxhall have all used Haldex systems at various points, each with its own fill port location, torque specification and electronic integration.
Audi applications in particular often pair the Haldex unit with brand-specific diagnostic requirements and adaptation procedures, covered in more depth in this Audi Haldex service guide. A partner resource on common Audi maintenance mistakes also highlights overlapping pitfalls, since rushed fluid changes and skipped inspections are not unique to Haldex work on that platform.
The practical takeaway is to always confirm your exact generation and fill port location for your specific model before starting, rather than assuming a procedure from a different badge will transfer directly. A fill port in the wrong place, or a torque spec borrowed from a different platform, is how a careful DIYer still ends up with a comeback.
Common myths about Haldex servicing
A few persistent myths lead directly to the mistakes covered earlier in this guide. Clearing them up before you start saves a repeat job.
“Any gear oil will do.” This is the myth behind most wrong-fluid failures. Haldex clutch packs need a specific friction profile that generic gear oil and ATF do not provide.
“If it’s not leaking, the filter is fine.” A filter screen can be clogged with debris long before any external leak appears, quietly starving the pump of flow.
“A Haldex service is just a fluid change.” Skipping the filter inspection and the post-service diagnostic check is how a fluid-only job still leaves warning lights or engagement faults.
“Clearing the warning light means it’s fixed.” Clearing a code without investigating the cause hides a fault that will resurface, sometimes on the very next drive.
Shop-tech perspective: the one rule that matters
When in doubt, use OEM-spec fluid and fit a fresh filter: that single habit prevents more comebacks than any other step in this guide. DIY servicing saves real money when you follow the sequence properly, but a rushed job chasing a lower parts bill often costs more in a pump or clutch pack replacement later.
— Mindaugas
Getting the right parts for the job
Most of the mistakes in this guide come down to fitting the wrong part or skipping one, not a lack of skill. HaldexParts.co.uk stocks OEM-grade pumps, oils and filters selected for your exact brand and generation, which removes the guesswork that leads to mismatched fitment.
- If your pump nose is worn on a first or second generation unit, the pump nose replacement guide covers the exact parts and fitment notes.
- If a connector plug is corroded or damaged on a second, third or fourth generation pump, the connector plug replacement set is matched to those generations.
- If you are replacing a Gen5 pump on an Audi R8, check fitment against the 0D4906271A pump listing before ordering, since interchangeability is limited.
- For a full service, browse pumps, oils, filters and service kits to find the correct set for your vehicle brand.
Confirm your Haldex generation and vehicle brand before ordering, then check the full kit against your workshop manual so the parts you fit match the job in front of you.
Curated links for further reading
FAQ
How often should a Haldex be serviced?
Service intervals depend on generation: Gen1, Gen2 and Gen4 units are typically serviced every 20,000 to 30,000 miles, while Gen5 units need attention more often, around every 10,000 miles. Always check your specific vehicle manual, since some manufacturers set tighter intervals for hard use.
How do you test if a Haldex is working?
Run an engagement test on a low-grip surface, such as loose gravel or a wet surface, at low speed: drive should engage within a second or two of wheel spin starting. If engagement is delayed, absent, or accompanied by warning lights, check the fluid level and scan for codes before assuming the unit has failed.
How much should a Haldex service cost?
Cost depends on whether you are buying parts for a DIY job or paying a shop for labour and parts together, and pricing for OEM-grade pumps, oils and filters is available on request through a parts supplier such as HaldexParts.co.uk. Get a specific quote for your vehicle brand and Haldex generation rather than relying on a generic figure, since parts and complexity vary widely.
How long does a Haldex service take?
A straightforward fluid and filter service usually takes an experienced DIYer a few hours with the vehicle on a lift or ramps, longer on a first attempt or without proper access. Adding pump or seal replacement extends that time further, particularly on models with tight engine bay clearance around the unit.
