Most Haldex fluid leaks can be diagnosed at the wheel and many are repaired by replacing seals, the filter cap O-ring or the pump nose, all jobs within reach of a competent DIY mechanic. If the leak is heavy or the ground shows pooling fluid, stop driving and let the unit cool before you touch anything. From there, the right move is to work through a short diagnostic checklist to confirm the source before you order parts.
TL;DR:
- Most Haldex leaks are caused by damaged pump nose O-rings, filter cap O-rings, or breather grommets, which can often be fixed with DIY seal replacement.
- Proper diagnosis involves wiping the suspected area, rechecking after a short drive, and testing fluid color and contamination levels to confirm the leak source.
- Repair parts are specific to Haldex generation, with early units generally needing seal swaps and later models requiring control unit reseals or full pump rebuilds.
- Replacing seals and refilling the system generally takes less than four hours, but internal pump wear signs like metal particles demand professional attention.
- Ensuring you purchase the correct generation-specific kit is critical for a durable fix, and DIY is suitable only if fluid is clean and the leak source is clearly identified.
Table of Contents
- Confirming a Haldex leak: what to check and simple tests
- Which parts commonly leak and how the fault profile changes by generation
- DIY repair sequence: tools, removal, seal replacement and reassembly
- How to drain, refill and bleed a Haldex unit correctly
- Estimated parts costs, workshop charges and typical repair times
- Why trust these steps: author credentials and the client’s parts coverage
- Practical first-person advice on when to DIY and when to use a workshop
- Getting the right kit for your Haldex generation
- FAQ
Confirming a Haldex leak: what to check and simple tests
Before buying anything, prove the leak is actually coming from the Haldex unit and not the differential, gearbox or a fuel line running nearby. The Haldex pump sits ahead of the rear differential on most applications, so fluid trails often run forward from the pump housing rather than from the diff casing itself.
- Check the pump housing, filter cap and breather hose first, since these are the most exposed points and the easiest to wipe clean and re-inspect.
- Look near the rear subframe and around the differential plugs, as fluid can migrate along brackets before dripping onto the ground.
- Wipe the suspected area dry, drive a short distance, then recheck: fresh fluid reappearing at the same spot confirms an active leak rather than old residue.
- Smell and colour test the fluid: Haldex oil is typically a clean amber or red hue, while gear oil is darker and has a stronger sulphur smell, and fuel evaporates quickly and smells nothing like either.
- Check for contamination signs such as metal particles or black sludge in the fluid, which point to internal wear rather than a simple seal failure.
Photograph the leak location and the fluid colour before you start work. A short video of the drip under the car, taken with the engine off and the unit stationary, makes it far easier to match the symptom to the right kit later, and it is a useful record if you need to compare notes on a forum or with a seller.
Which parts commonly leak and how the fault profile changes by generation
Haldex units share a basic layout but the service points differ by generation, so identifying yours before ordering parts avoids a wrong-size seal arriving on your doorstep.
- Pump nose O-ring: the most common leak point on first and second generation pumps, often visible as oil seeping from the front of the pump housing.
- Filter cap O-ring: a frequent source of slow seepage, usually found by removing the cap and inspecting the rubber ring for flattening or cracking.
- Breather grommet or hose: a perished breather can let oil weep out under pressure changes rather than from a joint failure.
- Control unit seals: relevant on second and third generation units fitted with a separate electronic control unit housing.
- Pump housing flange: a less common but possible leak path where the housing halves meet, usually linked to a damaged gasket.
Generation one and two units respond well to pump nose or filter servicing. Generation three and four units more often need a control unit reseal or a full pump reseal kit, since the housings are built differently. Generation five units have moved away from a simple replaceable filter towards screen-based servicing, which changes both the tools and the time needed.
Pro Tip: Check your vehicle’s build year and model against the generation chart on the parts page before ordering, since a VIN lookup alone will not always tell you which pump variant is fitted.
DIY repair sequence: tools, removal, seal replacement and reassembly
Once you know the generation and the leak point, the repair itself follows a consistent sequence.
- Gather the correct generation-specific kit, a torque wrench, new sealing washers, nitrile gloves and a drain pan, and work on a level surface with the handbrake on and wheels chocked.
- Raise and support the rear of the vehicle, then locate the pump, which usually sits bolted to the rear differential housing accessible from under the car.
- Remove the fasteners holding the pump or filter cap, noting that most use Torx or hex bolts with a specified torque value, so avoid over-tightening on reassembly; for additional practical guidance on repair logistics, refer to this auto glass replacement guide for US drivers.

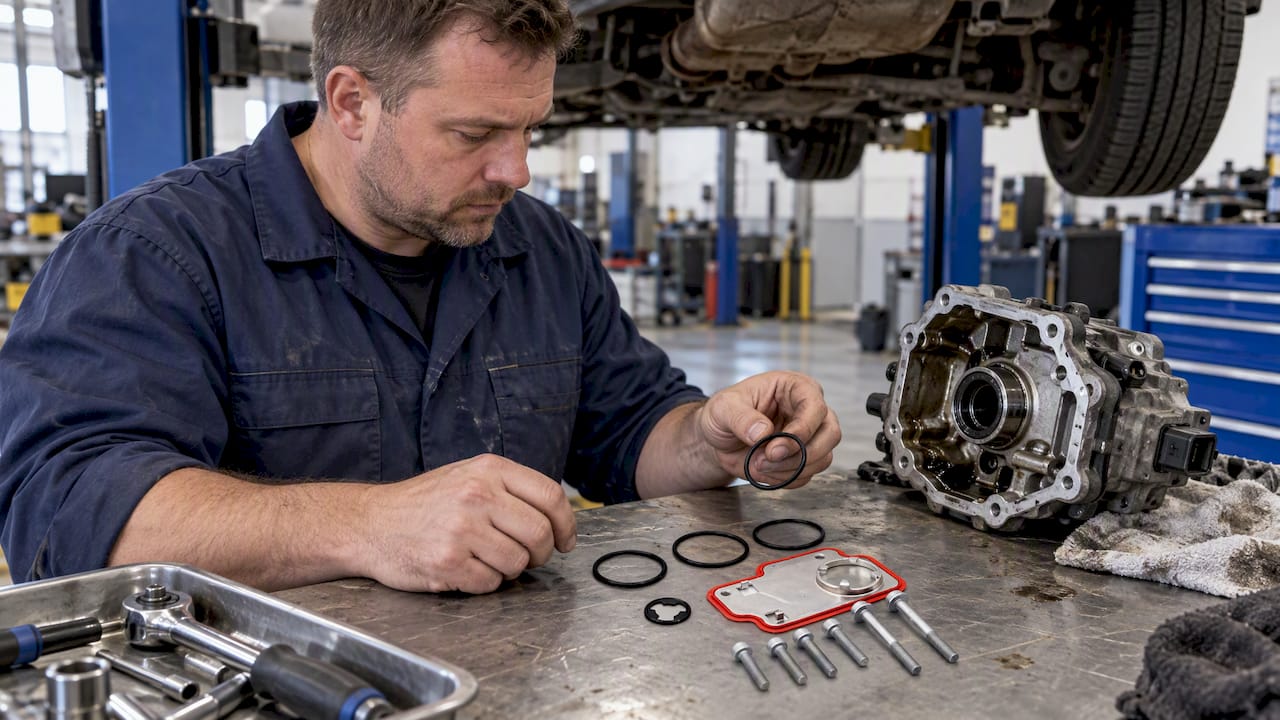

- Replace the pump nose O-ring using the AWD pump nose replacement kit on first and second generation pumps, or swap the full seal set from a Gen 4 repair seal kit when the pump design requires it.
- Replace the filter and its cap O-ring at the same time if the filter has not been serviced recently, since it is cheap insurance against a repeat leak.
- Check the breather hose for cracking or hardness and replace it if it has lost flexibility.
- On units with a separate control unit, clean the mating surfaces and fit a new reseal kit rather than reusing the old gasket.
- Torque all fasteners to the specified value, then wipe the area completely clean before refilling.
Pro Tip: Do the leak test with the area completely dry and the engine off first, then repeat after a short drive, since some seals only show weeping once the unit has warmed up and built pressure.
After reassembly, hand-check every bolt you touched, run the engine briefly without moving the car, and inspect for fresh fluid before taking it on the road.
How to drain, refill and bleed a Haldex unit correctly
Getting the fluid level right matters as much as fixing the leak itself.
- Drain the old fluid using a syringe through the fill hole, or tilt the unit slightly if you have removed the pump, catching everything in a pan for proper disposal.
- Refill slowly through the fill hole using the syringe method, stopping when fluid begins to seep slowly from the level hole rather than chasing an exact volume figure.
- Cycle the pump by running the engine and briefly reversing or manoeuvring the car to work fluid through the system, then recheck the level once the unit has warmed up.
- Take a short test drive, then park on level ground and recheck both the level and the repaired seal for any sign of weeping.
Estimated parts costs, workshop charges and typical repair times
Parts costs vary by generation and kit, so check the specific product page for your pump variant rather than assuming one price covers every model.
- A simple filter cap or breather O-ring swap is the cheapest fix and the quickest, often completed in under two hours including fluid change.
- A full pump nose or pump reseal job takes longer and costs more in parts, reflecting the larger seal kit and gasket set involved.
- Workshop labour rises sharply once contamination or metal particles are found in the fluid, since that points to internal pump wear rather than a seal-only fix.
- Expect roughly 10 to 90 minutes for a quick seal swap, 2 to 4 hours for a pump reseal or replacement, and longer again for a full control unit reseal.
Why trust these steps: author credentials and the client’s parts coverage
This guide was put together by Mindaugas, drawing on generation-aware repair workflows and parts cross-referencing used across various repair guides, including the Gen 4 pump reseal walkthrough, the DIY pump replacement guide and the quick generation-aware oil leak fixes.
Parts selectable by brand and by Haldex generation prevent the wrong seal size from causing a DIY reseal failure. Readers working on a specific model can follow the linked guides above for step-by-step photos and torque notes matched to their generation.
Practical first-person advice on when to DIY and when to use a workshop
I would attempt a DIY repair when the leak point is clearly identified, the fluid is clean, and the correct kit is already on the bench. I would hand it to a workshop if the fluid shows metal glitter, the source is still unclear after inspection, or I lack the tools to torque fasteners correctly. The most common mistake is reusing an old gasket to save time.
— Mindaugas
Getting the right kit for your Haldex generation
Once you know the generation and the leak point, ordering the matching kit is the difference between a repair that lasts and one you redo in six months. We carry OEM-grade parts selected by brand and generation, so you are not left guessing whether a seal fits your pump housing.
- First and second generation pump nose leaks are covered by the AWD pump nose replacement kit, built for that exact housing shape.
- Second and third generation control unit resealing is covered by the OEM BorgWarner control unit repair kit.
Browse the full pumps, oils and filters range to match your vehicle’s brand and generation before checkout. Orders over a certain amount qualify for free shipping, which is worth bundling into if you are replacing the filter and fluid at the same time as a seal kit.
FAQ
How much does it cost to service a Haldex?
Service costs depend on whether you are swapping a filter and fluid or doing a full pump reseal, with parts prices varying by generation and kit. Check the specific product page for your pump variant for an exact parts price before budgeting labour on top.
Is a differential leak expensive to fix?
A differential leak is a separate repair from a Haldex pump leak and tends to cost more when internal wear or contamination is involved rather than a simple seal failure. A straightforward gasket or seal replacement is usually the cheaper end of that range.
How do I know if my Haldex is failing?
Common signs include visible fluid under the rear of the car, a whining or clunking noise from the rear differential area, and reduced traction in slippery conditions. Checking the fluid for metal particles or dark sludge helps separate a simple seal leak from deeper pump wear.
How much does it cost to replace a Haldex pump?
A full pump replacement costs more than a reseal because it includes the housing and internal components rather than just seals and O-rings. Generation-specific kits such as the BorgWarner 4th Gen seal kit are priced on their own product pages, so check fitment for your model first.
