Haldex Gasket Reuse: 3–4 Hour DIY Checks and Exact Parts

Most Haldex O-rings and gaskets should be replaced, not reused, unless a seal is genuinely pristine and the job is a short, routine service with no pump removal involved. The main risk is a slow leak that starves the pump or lets contamination into fresh fluid, which is why OEM guidance leans toward replacement whenever there’s any doubt. If the seal shows hardening, flattening, nicks or came off a pump that’s being removed, replace it without exception.

TL;DR:

• Reusing Haldex seals is only safe if they are new-looking, flexible, uncontaminated, and the job does not involve pump removal or seal contact with degraded fluid.
• Visible damage, hardening, flattening, embedded debris, or discoloration always necessitate seal replacement, regardless of appearance.
• Seals that have been disturbed during pump removal should always be replaced, as removal stresses the seals and risks future failures.
• Proper installation involves careful cleaning, lubricating with system fluid, and fitting without twisting, with reassembly torqued to OEM specifications.
• Different Haldex generations require specific seal parts, with older models needing additional consideration for wear and sealing surface conditions.

Table of Contents

• How to inspect Haldex O-rings and gaskets: a practical checklist
• Why reusing seals is risky: failure modes and real consequences
• Haldex generation and application notes that affect gasket reuse (Gen 2–5)
• Step-by-step: replacing Haldex seals and installing new O-rings correctly
• Parts, tools and where to get OEM-grade seals (recommended kit checklist)
• Author notes and practical tips from Mindaugas (hands-on tricks and common mistakes)
• First-person perspective: when I will reuse a seal and when I won’t
• How HaldexParts’ kits match the jobs discussed
• FAQ

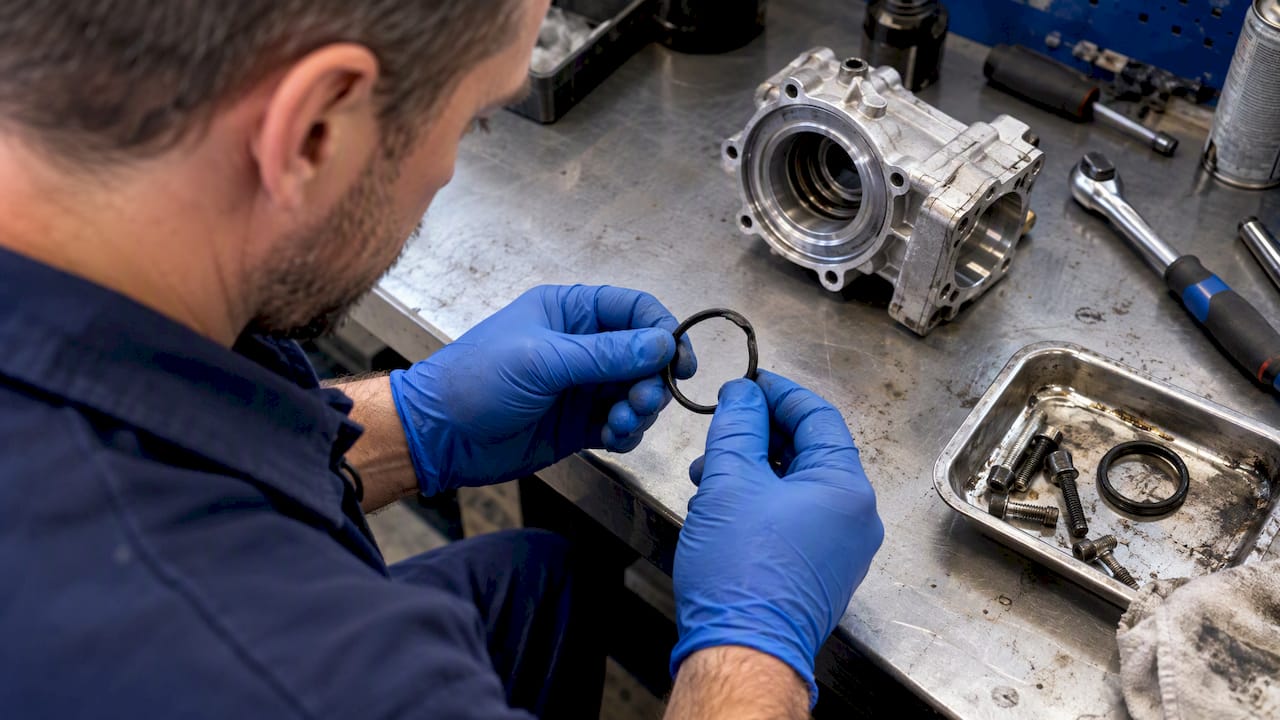

How to inspect Haldex O-rings and gaskets: a practical checklist

Before deciding whether an old seal goes back in, give it a proper look under good light, not a quick glance while you’re holding a torque wrench in the other hand. A worn Haldex gasket rarely fails obviously. It fails quietly, a few weeks after you’ve closed everything up and moved on to the next job.

Start with the visual pass. Run your thumbnail around the circumference of the O-ring and look for nicks, cuts or embedded grit that came from the housing bore. Any flat-sided section, where the seal has taken a permanent set against a groove or gasket face, is a fail on sight. Surface distortion, that slightly lopsided or oval look rather than a true circle, usually means the seal has been compressed unevenly for a long time and won’t spring back.

Then move to touch. A healthy Haldex O-ring feels slightly tacky and springs back immediately when you pinch it between finger and thumb. A seal that feels dry, glassy or brittle, or that stays dented after you press a fingernail into it, has taken a compression set and won’t make a reliable face seal again, even if nothing looks visibly wrong. Hardening is the most common failure mode, and it’s also the easiest one to miss on a quick inspection because the seal can still look round and undamaged.

A few checks worth running every time:

• Nick and cut check: roll the seal slowly between your fingers under a bright light, looking for any break in the surface, however small.
• Spring-back test: squeeze the cross-section and release it; it should return to its original shape within a second or two.
• Flat-spot check: compare the seal’s cross-section at several points around its circumference; any flattening against one side signals a permanent set.
• Tackiness check: the rubber should feel slightly grippy, not slick, dry or chalky.
• Contamination check: look for embedded metal particles, which often mean there’s wear elsewhere in the pump that a new seal won’t fix on its own.

If you have a set of feeler gauges or a small vernier calliper on the bench, measuring the cross-sectional diameter against a known-good replacement is a useful sanity check on flattening that’s hard to judge by eye alone. Haldex manuals describe this kind of inspection as the baseline for deciding whether an O-ring can stay in service, while generally recommending replacement when there’s any doubt about its condition.

Old fluid complicates the picture. Even a seal that passes every visual and tactile test can be unsafe to reuse if it’s been sitting in degraded Haldex fluid full of metal fines or varnish. That residue can transfer into the new oil charge and accelerate wear on the pump’s internal components, which defeats the purpose of doing the service in the first place. When fluid comes out dark, gritty or smelling burnt, treat every seal that touched it as suspect regardless of how it inspects.

Pro Tip: Keep a brand-new O-ring from stock next to the one you’re inspecting. Side-by-side comparison makes flattening and hardening far easier to spot than judging the old seal on its own.

A short list of red flags that always mean replacement, no exceptions: any visible nick or cut, a permanent flat spot, a dry or glassy feel, embedded debris, and discolouration that suggests heat exposure. None of these are judgement calls. They’re a straightforward no.

Why reusing seals is risky: failure modes and real consequences

A seal doesn’t need to be obviously broken to cause a problem. It only needs to be marginal, and marginal seals are exactly the ones that tempt people into reusing them because they look fine at a glance.

The most common failure path starts small: a seal that’s lost a fraction of its original compression lets air into the pump housing or lets fluid seep past at low pressure. That shows up first as a slight weep that you might not notice until it’s left a mark on the undertray. Left alone, it can progress to pump cavitation, where the pump draws in air alongside fluid and loses its ability to build pressure properly. That’s when drivers start noticing sluggish all-wheel-drive engagement, a warning light on the dash, or outright loss of rear-axle drive at the worst possible moment.

Contamination is the other side of the same coin. A seal that’s hardened or started to break down at the edges can shed tiny fragments of rubber into the fluid you’ve just paid for and poured in fresh. Those fragments circulate through the pump and valve body, where clearances are tight enough that grit-sized debris can score a bore or jam a valve. You end up paying for new fluid and a new filter, then diagnosing a fault that the degraded seal caused in the first place.

• Leak progression: a marginal seal often starts as a weep and becomes a measurable leak within a few months of driving.
• Cavitation risk: air ingress from a failed seal can prevent the pump from building the pressure the Haldex clutch pack needs.
• Warning light cascade: reduced pump pressure frequently triggers an AWD fault code well before the fluid level visibly drops.
• Repeat labour: a leak that reappears after a service means removing the same cover or pump a second time, often within weeks.

One Haldex manual’s own guidance is notable here: it states you may inspect and reuse an O-ring if it’s in perfect condition, but replacing the O-ring is often recommended when there’s any uncertainty. That’s a narrow door, not a green light, and it puts the burden of proof on the inspection, not on convenience.

Weigh the economics honestly. A new O-ring or gasket costs a small fraction of what a return visit costs in labour, let alone the cost of a pump that’s failed because it ran dry or ingested grit. Aftermarket supplier documentation echoes the same caution: reusing a seal is done at the technician’s own risk, and replacement is generally treated as the safer default when there’s any doubt about condition. For a job that already involves draining fluid, removing covers and handling a torque wrench, the extra cost of a new seal is rarely the part worth economising on.

Haldex generation and application notes that affect gasket reuse (Gen 2–5)

Haldex pumps have changed enough across generations that a blanket rule doesn’t quite cover every vehicle. Knowing which generation you’re working on changes what’s realistic to inspect, what’s replaceable on its own, and where reuse becomes a bad idea almost by design.

First and second-generation pumps use a nose section that can wear or score over repeated service, which is why a replacement nose tip exists as a separate serviceable part rather than forcing a full pump swap. On these earlier pumps, the seal at the nose interface takes a lot of mechanical load from the pump’s internal mechanism, so even a seal that looks fine can be sitting against a nose surface that’s already started to wear unevenly. Reuse on these generations is riskier simply because the mating surface ages alongside the seal.

Fifth-generation Haldex pumps, fitted across a wide range of Audi, VW, BMW, Volvo and Jaguar applications, use a different nose design that again benefits from a dedicated replacement tip set rather than reusing a worn original. The seals involved here are smaller and the tolerances tighter, which means a flattened or hardened O-ring has less margin for error before it starts leaking.

Across second to fifth-generation applications spanning VW Group, Volvo, Land Rover and Ford platforms, the differential pinion seal is a separate consideration from the pump nose seals. A dedicated pinion sealing set covers this interface, and because the pinion seal sits at a rotating shaft rather than a static joint, it’s under constant dynamic load that makes any existing wear progress faster than it would on a static O-ring.

A few generation-specific pitfalls worth flagging:

• Gen 2 pumps: nose wear often outpaces seal wear, so a good-looking seal can still leak against a scored surface.
• Gen 4 pumps: orientation during reassembly affects how easily air bleeds out, which matters more than seal reuse decisions on this generation.
• Gen 5 pumps: tighter tolerances mean even minor flattening on the O-ring shows up as a leak sooner than on earlier designs.
• Pinion seals (Gen 2 to 5): dynamic rotation means a seal that’s been in service for several years is rarely worth reusing, even if it inspects reasonably well.

Step-by-step: replacing Haldex seals and installing new O-rings correctly

Once you’ve decided replacement is the right call, the job itself rewards patience more than strength. Most of the failures we see traced back to installation, not the parts themselves.

1. Set up a clean bench first. Lay out rags, the new seals, fresh Haldex fluid and a new filter where you won’t need to search for them mid-job, and keep the work area free of grit that could end up on a new O-ring.
2. Remove the old cover or pump carefully. Work around the fastener pattern evenly rather than levering from one side, so the gasket or seal comes away without tearing and the mating surface stays undamaged.
3. Inspect the mating surfaces before fitting anything new. Wipe away old fluid residue and check for scoring, corrosion or old gasket material that hasn’t fully come away; a new seal against a damaged surface will leak regardless of how carefully you fit it.
4. Lubricate the new O-ring with the correct fluid. A light coating of the same Haldex oil you’re refilling with helps the seal seat without twisting; avoid grease or anything that isn’t compatible with the system’s fluid.
5. Seat the seal without twisting it. Work it into its groove evenly around the circumference rather than stretching one section into place first, which is the most common cause of a pinched or twisted O-ring that leaks from day one.
6. Reassemble in the reverse order of removal, bringing fasteners up gradually and evenly rather than fully tightening one before moving to the next.
7. Torque to the figure in the OEM manual for your specific pump generation, since torque specs vary enough between generations that a guessed figure risks either a leak from under-tightening or a cracked housing from over-tightening.
8. Refill with the correct fluid quantity for your Haldex generation, checking the refill capacity guide rather than estimating, since underfilling starves the pump just as effectively as a leaking seal does.
9. Bleed the system following the procedure for your pump generation, taking particular care on units where orientation affects how easily trapped air escapes.
10. Leak-test before putting the vehicle back into full service. Run the engine, cycle the system if your procedure allows it, then recheck every joint you touched after it’s had a chance to reach operating temperature.

Pro Tip: Fit the new seal dry-handed and only add fluid to it once it’s seated in its groove. Lubricating it beforehand makes it slippery enough to twist as it goes in, which is one of the most common causes of a leak that appears within the first week.

Give the job 3 to 4 hours if you’re doing a full seal replacement alongside a fluid and filter change, more if you’re also addressing a pump or solenoid valve while everything’s apart. Rushing the reassembly stage is where most comebacks start.

Parts, tools and where to get OEM-grade seals (recommended kit checklist)

Getting the right parts before you start saves a second trip to the bench with everything half-disassembled. A typical seal job needs the pinion seal, the pump nose O-ring (and nose tip if it’s worn), a new filter, and the correct quantity of fresh Haldex fluid for your generation.

On the tool side, keep a seal driver or a socket of the right diameter for tapping new seals in square, a soft-faced mallet rather than a steel hammer, a torque wrench rated for the small figures Haldex fasteners use, a pump holder if your job involves removing the pump itself, and a sharp scalpel or plastic scraper for lifting old gasket material without scoring the housing.

• Pinion seal jobs: the differential pinion sealing set covers second to fifth-generation applications across VW Group, Volvo, Land Rover and Ford platforms.
• First and second-generation pump nose jobs: the pump nose replacement tip addresses nose wear on earlier pump designs.
• Fifth-generation pump nose jobs: the fifth-generation nose tip set is built for Audi, VW, BMW, Volvo and Jaguar applications on that pump design.
• Complete service jobs: a full service kit bundles the filter and fluid alongside the seals so you’re not ordering three separate items.

Before ordering, confirm fitment against your vehicle’s Haldex generation rather than its make and model alone, since the same manufacturer can fit different Haldex generations across model years. The types of service kit bundles guide walks through which bundle suits which job if you’re unsure which parts your service actually needs.

Author notes and practical tips from Mindaugas (hands-on tricks and common mistakes)

A few jobs stick with you because they went right, and a few stick with you because they went wrong. A routine fluid and filter change on a low-mileage Haldex unit, where the O-ring inspected as new and the job never touched the pump, is about the only scenario where reuse has consistently held up over the following service interval. Anything beyond that, and the odds start shifting.

The clearest failure pattern involves a pump that’s been removed for any reason. Once a pump’s off the car, replace every seal it touched, full stop, because the act of removal itself stresses seals that might otherwise have had more life left in them. The Gen 4 pump trick, orienting the pump a particular way during reassembly, makes bleeding noticeably easier and also makes it far simpler to spot a leak during testing, since trapped air no longer masks a slow weep.

• Over-torquing: tightening fasteners past spec to “make sure it’s sealed” is a common DIY mistake that cracks housings rather than improving the seal.
• Contaminating new seals: handling a fresh O-ring with greasy fingers or letting it pick up grit from an unclean bench undoes the benefit of replacing it at all.
• Reusing a perished O-ring out of convenience: the seal that looks “probably fine” at 11pm on a Sunday is exactly the one that leaks a fortnight later.

Pro Tip: Lay new seals out on a clean paper towel, not directly on the bench, until the moment you’re ready to fit them. It takes seconds and avoids most of the contamination mistakes above.

First-person perspective: when I will reuse a seal and when I won’t

My own threshold is simple: a seal has to be new-looking, under a couple of years old, and the job has to stop short of pump removal before I’ll put it back in. Anything older, anything that’s touched contaminated fluid, or anything that came off a pump I’ve just pulled apart goes in the bin, no second look.

For DIYers doing an occasional service, the cost of a new seal is trivial against the cost of doing the job twice. For trade professionals, it’s worse: a comeback costs reputation as well as time, and that’s not a trade worth making to save the price of an O-ring.

My bench checklist before refitting anything: does it look new, does it spring back immediately, has it avoided contaminated fluid, and did the job avoid pump removal? If all four are yes, reuse is defensible. If any one is no, replace it.

— Mindaugas

How HaldexParts’ kits match the jobs discussed

When replacement is the right call, we stock parts built around the exact jobs covered above, rather than generic seals that leave you guessing on fitment. For pump nose work on first and second-generation pumps, we carry the matching nose tip; for fifth-generation pumps across Audi, VW, BMW, Volvo and Jaguar, we carry the dedicated tip set; and for differential pinion seals spanning second to fifth generation across VW Group, Volvo, Land Rover and Ford, we carry the corresponding radial sealing set.

Before ordering, check the product page for your specific Haldex generation and confirm the kit includes everything the job needs, down to seal type and quantity, so you’re not left short mid-service.

• Check your pump or differential generation against the fitment notes before adding a kit to your basket.
• Order the full service kit when you’re also due a fluid and filter change, rather than ordering seals separately.
• Keep the correct fluid quantity to hand from the refill guide so the job finishes in one sitting.

Browse our full range of pumps, oils and filters to confirm fitment and get the right kit on the bench before you start.

FAQ

Can you reuse Haldex gaskets or O-rings safely?

Reuse is only defensible when the seal is genuinely pristine, the job doesn’t involve removing the pump, and the fluid it was running in wasn’t contaminated. Outside those narrow conditions, replacing the O-ring is generally the safer route according to Haldex service guidance.

What are the signs a Haldex O-ring needs replacing?

Any nick, cut, flat spot, hardening, loss of tackiness or embedded debris means the seal should be replaced rather than reused. A seal that’s been exposed to dark, gritty or burnt-smelling fluid should also be treated as suspect even if it inspects well visually.

Does removing the Haldex pump mean I have to replace the seals?

Yes, as a practical rule, any seal that’s been disturbed by pump removal should be replaced rather than refitted, since the act of removal itself stresses seals that might otherwise have had service life left. This applies across Haldex generations, from early pump noses through to current differential pinion applications.

How long does a Haldex seal replacement take?

A full seal replacement alongside a fluid and filter change typically takes 3 to 4 hours for a DIYer working carefully. It takes longer if a pump or solenoid valve is being addressed at the same time.

Which Haldex generations need different seal parts?

First and second-generation pumps use a nose tip design that differs from the fifth-generation nose tip set, while differential pinion seals from second to fifth generation across VW Group, Volvo, Land Rover and Ford share a common sealing set design. Confirming your Haldex generation before ordering avoids a fitment mismatch.
