The simplest reliable workaround is a large syringe paired with thin silicone tubing fed into the Haldex fill port, pushing fluid through slowly while watching for resistance. A small hand pump with the same thin hose works too, and a multifunctional filler bottle can do the job once its nozzle is slimmed down. Whichever you pick, crack the fill plug before you drain anything. The steps below cover both top-fill and bottom-fill approaches.
TL;DR:
- Using a syringe with thin silicone tubing is the safest, most cost-effective method for top-filling, especially in tight engine bays, with slow but precise control.
- Confirm which fill plug leads to the Haldex unit before draining or refilling, as incorrect procedures can leave the coupling dry or fill the wrong chamber.
- Bottom-fill through the drain plug risks filling an empty chamber while missing the actual Haldex coupling, which is ineffective on many models.
- OEM-fit pump noses and connector sets ensure reliable, contamination-free refills without improvisation, reducing the risk of leaks or damage.
- Strain and filter all fresh Haldex fluid before use, and always crack the fill plug first to prevent being unable to refill due to a seized or rounded plug.
Table of Contents
- Choosing the right workaround for your access and budget
- How to top-fill the Haldex coupling with a syringe and tubing
- When bottom-fill works and when it risks getting fluid in the wrong place
- Picking or improvising a pump without buying a factory adapter
- Freeing a seized or awkward fill plug without wrecking it
- Verifying the fill and avoiding the usual mistakes
- Parts and guides that remove the guesswork
- When improvising makes sense, and when it does not
- Where to find OEM-fit pump noses and connector plugs
- FAQ
- Sources
Choosing the right workaround for your access and budget
Before you commit to a method, think about three things: how much clearance you have around the fill plug, how much fluid you need to move, and how fast you want the job done.
A large syringe with thin silicone tubing is the best starting point for tight clearance, because the tubing can bend around obstructions that a rigid nozzle cannot clear. DIYers on the MK7 Haldex forum commonly source this tubing from children’s sippy cups or hardware stores, since the Haldex aperture only accepts a very thin, flexible hose. A small hand pump moves fluid faster once it is set up, though rigging the hose takes a few extra minutes. A multifunctional filler bottle looks neat on the shelf but its factory nozzle is usually too thick for a Haldex port without modification.
- Syringe and thin tubing: slowest per stroke, best for cramped engine bays, lowest cost.
- Hand or quart pump with hose: faster for a full fluid change, needs a hose-clamped join to fit.
- Multifunctional filler bottle: convenient to store, but the stock nozzle almost always needs a thinner adapter.
Contamination risk rises whenever you improvise a connection, so strain the fluid and keep the working area clean regardless of which method you choose. Before starting, support the vehicle properly, have gloves and rags ready, and confirm the specification of Haldex fluid your model needs. Expect to work in stages rather than one continuous pour, since narrow tubing moves fluid slowly by design.

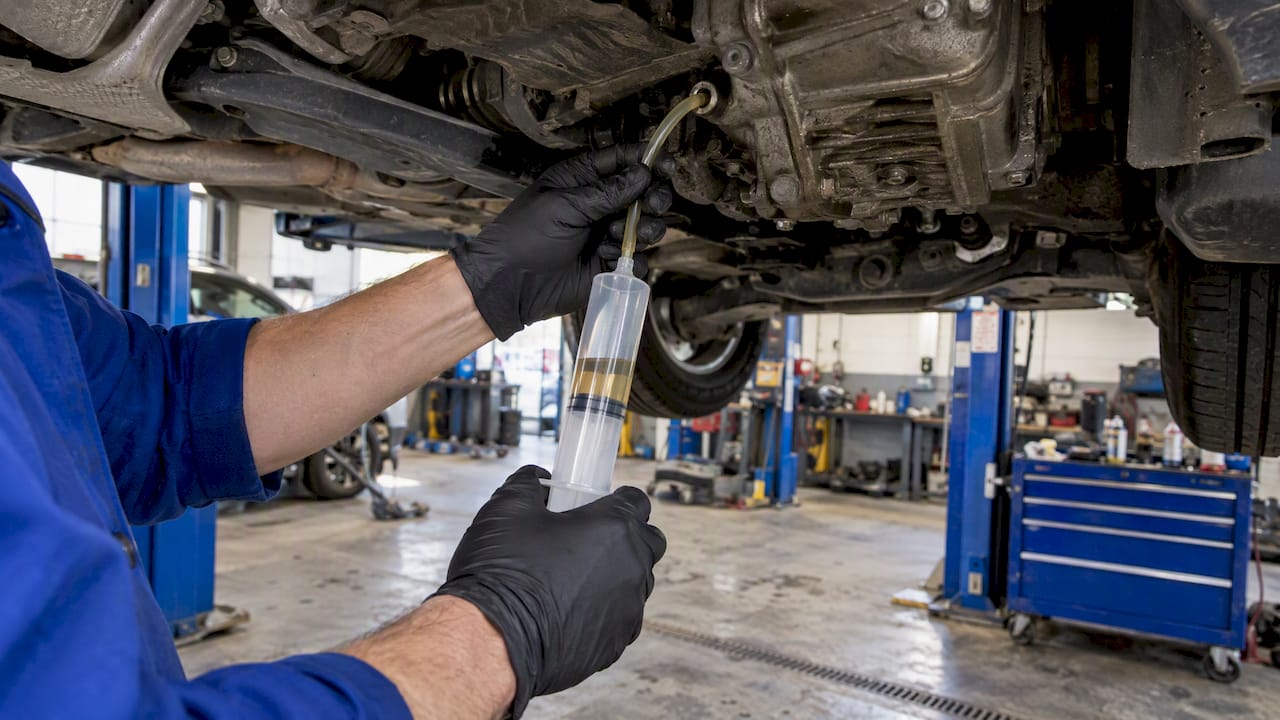

How to top-fill the Haldex coupling with a syringe and tubing
This method suits anyone without a dedicated adapter and with limited space around the fill plug. It takes longer than a pump but gives you precise control over how much fluid goes in and when to stop.
What you need:
- A 100ml or larger syringe (medical or fuel-transfer type)
- Thin silicone tubing, roughly 2 to 4 millimetres internal diameter
- Fresh Haldex-specification fluid
- Shop rags and gloves
Start by supporting the vehicle on stands and locating the fill plug, which sits separately from the drain plug on most Haldex units. Clean around it before touching anything. Crack the fill plug loose first, before you drain a drop of old fluid. This single habit, repeatedly stressed in forum advice on DSG and Haldex tools, prevents the nightmare scenario of an emptied Haldex unit with a fill plug that will not budge.
- Feed the silicone tubing into the fill port until it seats without forcing.
- Draw fresh fluid into the syringe, keeping the tip submerged to avoid pulling in air.
- Push the fluid through slowly, watching the port for any sign of return or resistance.
- Pause every few syringe loads and let the fluid settle before continuing.
- Stop once the fluid resists entry or begins to seep back, which signals a full chamber.
Thin tubing tends to collapse at the first bend if it is not supported, so a short length of rigid straw or stiffened tip taped inside the first 10 to 20 millimetres of silicone hose gives it enough backbone to enter the port cleanly, a trick described in the same MK7 Haldex thread.
Pro Tip: Strain every batch of fluid through a fine mesh before it goes anywhere near the syringe; grit in the Haldex pump causes far more trouble than a slow fill.
Once you have finished, torque the fill plug to the manufacturer’s specification if you know it, then check for leaks around the plug and housing. Where the vehicle supports it, running a short drive cycle lets the pump work the fluid through before you do a final visual check.
When bottom-fill works and when it risks getting fluid in the wrong place
Bottom-fill, pumping fluid in through the drain opening rather than the top port, has a narrower use case than most DIYers expect. The Haldex coupling sits in its own sealed chamber, separate from any adjoining axle or differential housing, and filling through the wrong opening can leave the coupling bone dry while the wrong chamber fills instead.
Reports on the MyTiguan forum describe exactly this failure: owners tried refilling through the differential or drain hole and found the fluid never reached the actual Haldex coupling, because the two chambers do not share a fill path on many models. Bottom-fill only makes sense when your pump connects directly to the correct inlet for your specific unit, not simply to whichever hole is easiest to reach.
- Confirm which plug actually leads to the Haldex coupling before you connect anything to the drain side.
- Treat any temporary seal on a seized top plug as a short-term emergency measure only, since it invites contamination and moisture ingress.
- If a pump genuinely attaches to the correct inlet, drain a small amount first, pump in the required volume, then re-seat and test immediately rather than leaving the job half-finished overnight.
Our guide to removing a seized drain or fill plug walks through the differences between these plugs in more detail and covers how to avoid filling the wrong chamber altogether. When in doubt, top-fill through the correct port remains the safer route, even if it takes longer with a syringe.
Picking or improvising a pump without buying a factory adapter
A decent hand pump turns a slow syringe job into a quicker one, but not every cheap pump on the market is worth the money. Look for a clear hose so you can see fluid moving, a reliable check valve that stops back-flow between strokes, and a quart-size reservoir if you expect to move more than a litre.
- Clear hose: lets you spot air bubbles or debris before they reach the Haldex unit.
- Check valve: keeps fluid from siphoning back out between pump strokes.
- Quart-size reservoir: cuts the number of refills needed for a full service.
Most stock pump nozzles are still too wide for a Haldex fill port straight out of the box. Owners on Audizine commonly narrow the fitting by running thin silicone tubing, the same sippy-cup style hose used for syringe fills, over the factory nozzle and securing it with a small hose clamp. This gets a cheap pump down to the right diameter without machining anything.
If improvising a connection feels like one adjustment too many, an OEM-fit pump nose removes the guesswork entirely. Our AWD pump nose and connector plug sets are built to the original fitment, so they seat correctly without clamps or tape.
Pro Tip: Pour fresh fluid through a fine strainer into a clean bottle before it ever meets your pump or syringe; a speck of grit that reaches the clutch pack causes far more damage than the ten extra seconds filtering costs.
Keep a dedicated, clearly labelled bottle for Haldex fluid only, since cross-contamination from an old container is one of the easiest mistakes to make and one of the hardest to trace afterwards.
Freeing a seized or awkward fill plug without wrecking it
Some fill plugs sit in genuinely awkward spots, tucked behind subframe members or heat shields, and a standard Allen key or socket simply will not swing through the arc needed to turn them.
- Shortened Allen keys or offset wrenches often clear obstructions that a full-length tool cannot.
- An angled or swivel socket extension can reach plugs set deep behind brackets without removing surrounding hardware.
- Crack the fill plug first, always, before you touch the drain plug, following the same safety habit Audizine contributors repeat throughout their tool threads.
If a plug has already rounded off, locking pliers combined with careful heat and a penetrating oil soak will shift most stuck plugs without further damage, as outlined in tips on Haldex drain and fill plugs. Avoid chiselling or prying near the sealing face itself, since a scored face means a leak no matter how well the plug eventually turns.
When a plug refuses to move after reasonable penetrating oil and heat, removing the pump assembly for better access is usually quicker and safer than continuing to force a single stubborn fastener. At that point, or if you round off a plug beyond what pliers can grip, it is worth stopping and handing the job to a workshop rather than risking the housing itself.
Verifying the fill and avoiding the usual mistakes
Cracking the fill plug before draining is worth repeating one more time, because it is the single step that prevents the worst outcome: an empty Haldex unit with no way back in. Check that the plug turns freely before you let any fluid out.
Once you have topped up, confirm the level by feel: fluid should start to resist entry or show signs of returning at the port when the chamber is full. Where your model supports a pump-learn or run cycle, use it to circulate the new fluid before your final check. After driving, watch for leaks around the plug and listen for any unusual clunks from the coupling, both signs that something was not seated correctly. Our overfill symptoms checklist covers what to look for if you have gone slightly too far and need to back off some fluid. A full service with a syringe typically takes several refill cycles of the syringe barrel, so budget more time than a dedicated pump would need.
Parts and guides that remove the guesswork
Three products cover the gaps that most DIY workarounds are trying to patch. The AWD Pump Nose Replacement Tips for 1st and 2nd generation Haldex pumps replace a worn or damaged nose without improvised tubing. The AWD Pump Connector Plug Replacement Tips for 2nd, 3rd and 4th generation pumps restore a reliable electrical connection where corrosion or age has loosened the original plug. The AWD Pump Connector Plug Replacement Set for 5th generation Haldex pumps, part 0CQ598305, covers the newer fitment across Audi, VW, Škoda, Seat, BMW, Volvo, Jaguar and Porsche applications.
Alongside the parts, our guides on drain plug removal, overfill symptoms and Gen 4 service steps walk through the verification stage in more depth. Fitting an OEM-matched nose or connector plug means you stop relying on hose clamps and tape every time you service the unit.
When improvising makes sense, and when it does not
A syringe and tubing is a perfectly reasonable way to top up fluid between services or after minor work on the unit. It is slower than proper tools, but for an occasional job, slow and careful beats expensive and rare.
Where the job turns into a full service, a seized plug, or repeated top-ups on the same vehicle, reach for OEM-fit parts or a workshop instead of repeating the same improvised fix. A tubing workaround that becomes a permanent fitting is where small savings start costing more in leaks and contamination.
— Mindaugas
Where to find OEM-fit pump noses and connector plugs
OEM-grade pump noses, connector plug sets and full service kits are built to the original Haldex fitment, so you are not relying on hose clamps and taped-together tubing every time you service the unit. Each product page lists the generation and vehicle compatibility clearly, which makes checking fitment against your own pump straightforward before you order.
- AWD Pump Nose Replacement Tips for 1st and 2nd generation pumps: a direct OEM-fit replacement for a worn or damaged nose.
- AWD Pump Connector Plug Replacement Set for 5th generation pumps, 0CQ598305: covers Audi, VW, Škoda, Seat, BMW, Volvo, Jaguar and Porsche fitments.
- Browse the full range of pumps, oils, filters and service kits to find the right match for your vehicle before you order.
If a fault code for the AWD or ABS pump turns up during or after a refill, the TuningBot reference for code 01276 is a useful starting point for working out what triggered it.
FAQ
Can you fill a Haldex unit without the factory adapter?
Yes. A large syringe with thin silicone tubing fed into the fill port is a widely used workaround, and a small hand pump with the same thin hose works as a faster alternative, as described in DIY reports from the MK7 Haldex community. Both methods avoid the need for a dedicated factory tool.
Why should you crack the fill plug before draining the Haldex fluid?
Cracking the fill plug first confirms it will actually turn before you empty the unit, which matters because a seized fill plug on an empty Haldex coupling leaves you unable to refill it. This habit is repeated throughout forum advice on Haldex and DSG tools for exactly that reason.
Can you refill the Haldex coupling through the drain or differential hole?
Not reliably on most models, because the Haldex coupling sits in its own chamber separate from the axle or differential housing. Owners on the MyTiguan forum found that fluid pumped through the wrong opening never reached the coupling at all, so top-fill through the correct port is the safer default.
What tubing works best for a syringe or pump workaround?
Thin silicone tubing with an internal diameter of roughly 2 to 4 millimetres, the same style used for children’s sippy cups, fits the narrow Haldex fill aperture well. A short rigid support taped inside the first 10 to 20 millimetres helps the hose enter the port without collapsing.
How do you know when the Haldex coupling is full?
Fluid will start to resist entry or show signs of returning at the fill port once the chamber reaches capacity. If your model supports a pump-learn or run cycle, using it afterwards helps circulate the fluid before a final leak check.
