Haldex diagnostic tools are specialised devices and software solutions designed to identify, troubleshoot, and maintain electronic all-wheel-drive and trailer ABS systems. The best haldex diagnostic tools examples split into two distinct categories: passenger vehicle scanners for AWD couplings found in Audi, VW, Skoda, and Volvo models, and heavy-duty platforms for trailer ABS modules used in commercial transport. Choosing the wrong category means missing fault codes entirely. Haldexparts supplies the OEM-grade service components that complement this diagnostic work, from pump motors and filters through to system-specific oils. Getting the diagnosis right first saves both time and money on unnecessary parts.
1. What are the main Haldex diagnostic tools examples for passenger vehicles?
Passenger vehicle Haldex system diagnostics require tools that go beyond basic OBD-II code reading. The AWD coupling communicates over a dedicated CAN bus, and only tools with bi-directional communication can send active test commands to the pump motor and solenoid. Without that capability, technicians end up replacing parts based on guesswork rather than confirmed data.
The most commonly used tools for passenger AWD diagnostics include:
- OEM-level dealer tools (ODIS for VAG group vehicles, VIDA for Volvo): Full bi-directional access, live sensor data, and guided fault-finding routines. These are the gold standard but carry high licensing costs.
- Professional aftermarket scanners with VAG or multi-brand coverage: Mid-range units that support fault code reading, live data streams, and some active tests on Haldex modules.
- OpenHaldex-S3: An open-source ESP32-S3 based controller with a browser-based Wi-Fi diagnostic interface. Supports Gen 1, 2, 4, and 5 Haldex systems with live telemetry and CAN decoding.
Technical expert Pavel Konopelko identifies bi-directional capability as the single most critical feature for accurate passenger vehicle Haldex diagnosis. Without it, a faulty wheel speed sensor reading can look identical to a failed pump motor in the fault log.

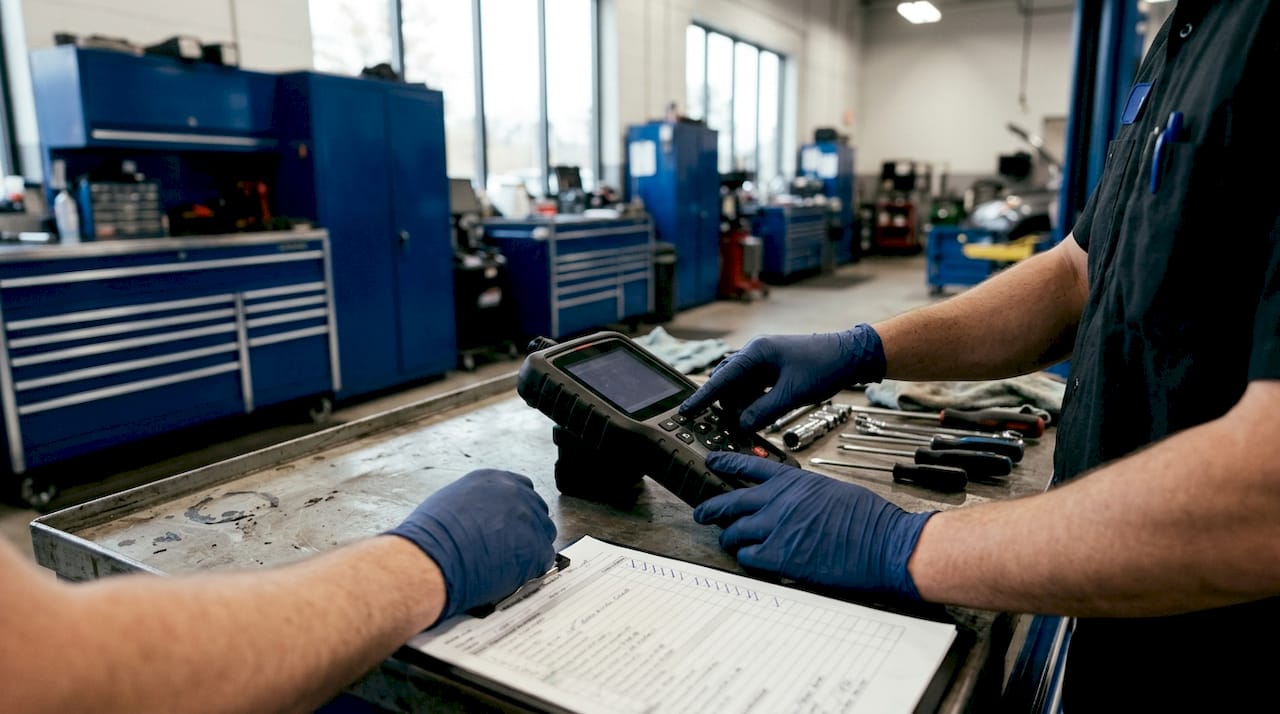

Pro Tip: Before condemning the Haldex pump on a VW Tiguan or Skoda Yeti, use a bi-directional tool to command the pump on manually. If it runs cleanly under command, the fault almost certainly lies with an ABS sensor or tyre diameter mismatch rather than the coupling itself.
Understanding how the Haldex AWD system works mechanically helps you interpret what the diagnostic data is actually telling you.
2. Which tools are used for heavy-duty trailer ABS Haldex systems?
Heavy-duty trailer ABS diagnostics demand a completely different tool set from passenger vehicle work. Professional diagnostic stacks for trailer ABS, including software licences and adapter cables, typically cost between $3,000 and $7,000. That investment reflects the depth of access these platforms provide into trailer ECU parameters.
The leading platforms used in independent workshops include:
- Jaltest CV with the JDC108A adapter cable: Preferred for its deep wiring diagrams, visual component location aids, and systematic fault-finding routines for Haldex trailer ABS.
- Bendix ACom AE: Widely used for Bendix-branded ABS modules but also covers Haldex-equipped trailers in North American fleets.
- WABCO Toolbox Plus: Covers WABCO EBS and ABS systems with parameter programming and end-of-line test capability.
- W.EASY Diagnostics: Integrates original Haldex and WABCO diagnostics for EBS and ABS systems across multiple manufacturers, including ECU parameterisation and end-of-line tests.
- Autel MS908CV: Reads trailer ABS fault codes including Haldex systems via the truck’s diagnostic port when the trailer is connected, alongside DPF regeneration and injector test functions.
| Tool | Primary use | Haldex trailer ABS coverage |
|---|---|---|
| Jaltest CV + JDC108A | Independent workshops | Full fault, parameter, end-of-line |
| WABCO Toolbox Plus | Fleet and dealer workshops | EBS and ABS parameter programming |
| W.EASY Diagnostics | Multi-brand workshops | Haldex and WABCO integrated |
| Autel MS908CV | Multi-function heavy-duty | Fault code read and clear via truck port |
The JDC108A adapter cable is not optional. Even with a multi-brand platform, correct adapter cables are required to establish full communication with the Haldex trailer ABS module. Skipping this step results in incomplete data or no connection at all.
3. How does OpenHaldex-S3 change the DIY diagnostic picture?
OpenHaldex-S3 is the most significant development in accessible Haldex diagnostics in recent years. It is an ESP32-S3 based AWD controller that replaces the factory Haldex ECU and adds a Wi-Fi accessible browser interface for real-time diagnostics and tuning. No proprietary software licence is required.
Key capabilities include:
- Multi-generation support: Covers Gen 1, 2, 4, and 5 Haldex systems, making it useful across a wide range of VAG group vehicles.
- Live telemetry: Displays real-time sensor data including wheel speeds, pump duty cycle, and coupling pressure in the browser interface.
- Live map editing: Technicians and enthusiasts can adjust AWD engagement maps on the fly, which is not possible with factory tools.
- CAN decoding: Reads and interprets CAN bus messages directly, enabling advanced fault analysis beyond what most aftermarket scanners offer.
- OTA firmware updates: The controller updates over Wi-Fi, keeping diagnostic and control logic current without physical access to the unit.
Pro Tip: OpenHaldex-S3 is particularly useful for diagnosing intermittent AWD faults that do not store persistent codes. The live telemetry view captures transient sensor dropouts that a standard scan tool would miss entirely.
For technicians interested in Haldex controller tuning beyond standard diagnostics, OpenHaldex-S3 opens up a level of access that previously required dealer-level equipment.
4. What diagnostic features do Haldex tools commonly offer?
The core diagnostic features found across Haldex system diagnostic tools fall into five functional categories. Understanding what each category does helps you evaluate whether a tool meets your specific needs before purchasing.
| Feature | What it does | Why it matters |
|---|---|---|
| Fault code reading and clearing | Retrieves stored and pending DTCs from the Haldex ECU | Identifies known faults without guesswork |
| Live data monitoring | Streams real-time sensor values during operation | Catches intermittent faults invisible in stored codes |
| Bi-directional active tests | Commands components such as the pump motor directly | Confirms component function before replacement |
| Parameter programming | Writes configuration values to the ECU | Required after component replacement or system reset |
| End-of-line tests | Runs a full system check sequence | Validates correct operation post-repair |
Firmware configuration is a frequently overlooked step in trailer ABS work. Updated firmware and correct telematics configuration are both required for complete Haldex EBS integration. Running outdated firmware can cause parameter writes to fail silently, leaving the system in a partially configured state.
Jaltest CV stands out for trailer ABS work because its visual diagnostic aids and wiring diagrams reduce diagnostic time significantly. Technicians can locate components on-screen rather than tracing wiring manually through a trailer chassis.
5. Which tool suits your specific situation?
The right Haldex diagnostic software depends on three factors: vehicle type, diagnostic depth needed, and budget. Matching these correctly avoids both under-spending on a tool that cannot complete the job and over-spending on features you will never use.
For heavy-duty trailer workshops:
- Jaltest CV with the JDC108A cable kit is the preferred choice for systematic fault-finding with visual support.
- W.EASY Diagnostics suits workshops handling both Haldex and WABCO systems on the same bench.
- Budget-conscious shops handling occasional trailer ABS work can use the Autel MS908CV for basic fault code reading via the truck port.
For passenger vehicle technicians:
- OEM dealer tools remain the most thorough option for VAG group and Volvo AWD systems.
- Professional aftermarket multi-brand scanners with confirmed bi-directional Haldex support cover most workshop needs at lower cost.
- OpenHaldex-S3 suits technicians who need live telemetry and map editing capability that factory tools do not provide.
For DIY enthusiasts:
- OpenHaldex-S3 is the most accessible option, combining controller replacement with full diagnostic capability at a fraction of dealer tool costs.
- Entry-level aftermarket scanners with VAG coverage handle basic fault code reading but lack active test functions.
Correct hardware adapters are non-negotiable regardless of which platform you choose. A multi-brand tool without the correct cable for your specific Haldex generation will not establish a full diagnostic connection. Check adapter compatibility before purchasing any platform. The Haldex repair turnaround guide covers how tool selection directly affects workshop efficiency.
Misdiagnosis is a real cost in this area. Mismatched tyre diameters and faulty ABS wheel speed sensors both trigger AWD warning lights that look identical to genuine Haldex coupling faults in the fault log. Always validate external sensors and tyre sizes before diagnosing the coupling itself.
Key takeaways
The most effective Haldex diagnostic approach combines bi-directional tool capability with correct hardware adapters and validated external sensor data before any component is replaced.
| Point | Details |
|---|---|
| Bi-directional capability is non-negotiable | Tools without active test functions lead to parts replacement based on incomplete data. |
| Passenger and trailer tools are separate categories | No single tool covers both AWD coupling and heavy-duty trailer ABS diagnostics equally well. |
| OpenHaldex-S3 changes DIY access | This open-source controller adds live telemetry and map editing beyond standard aftermarket scanners. |
| Adapter cables determine connection success | Even premium platforms fail to communicate without the correct generation-specific cable. |
| External factors cause false fault codes | Tyre diameter mismatches and ABS sensor faults mimic Haldex coupling failures in diagnostic logs. |
What I have learned from years of Haldex diagnostic work
The conversation about Haldex diagnostics almost always focuses on which software platform to buy. That is the wrong starting point.
The most expensive mistake I see technicians make is reaching for the scan tool before checking tyre diameters and wheel speed sensor outputs. A single tyre that is 3mm smaller in diameter than the others generates a continuous speed differential that the Haldex ECU interprets as a coupling fault. The fault code looks genuine. The coupling is fine. The fix costs nothing.
Bi-directional tools are worth every penny of their premium over passive scanners. The ability to command the pump motor directly takes a 45-minute diagnostic down to five minutes. If the pump runs cleanly on command, you are not looking at a pump fault. That single test eliminates the most expensive component on the list before you have touched a spanner.
The rise of OpenHaldex-S3 genuinely changes what is accessible to independent technicians and serious DIY enthusiasts. Live CAN decoding and real-time telemetry in a browser window, without a dealer licence, is a meaningful shift. The community development pace is fast, and the OTA update model means the tool improves without any hardware change.
My practical advice: keep firmware current on any EBS or ABS module you work with, carry the correct adapter cable for every Haldex generation you service, and never skip the tyre diameter check. Those three habits eliminate the majority of diagnostic errors I see in the field.
— Mindaugas
Haldexparts: parts that match your diagnostic findings
Diagnosing a Haldex fault is only half the job. Once the scan tool confirms what needs replacing, you need parts that match the system’s OEM specification.

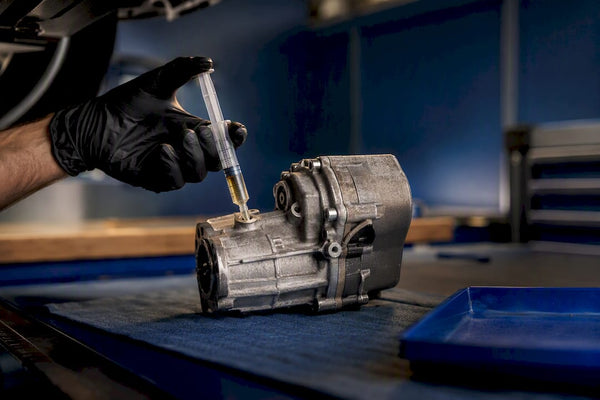

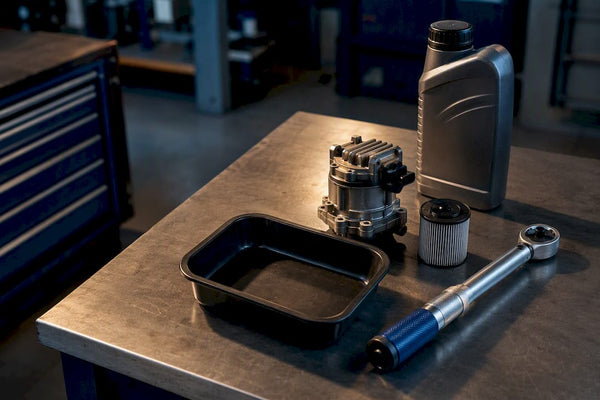

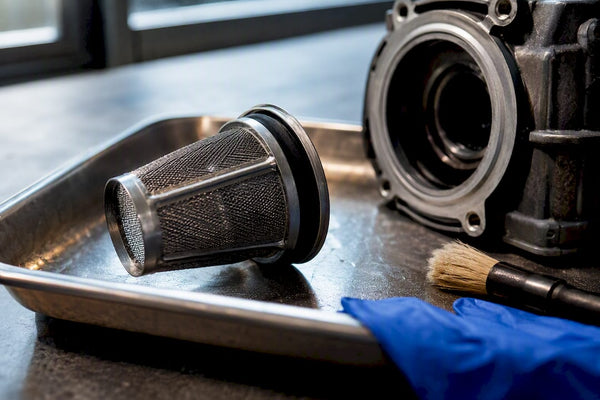

Haldexparts stocks Haldex service kits covering Gen 1 through Gen 5 AWD systems across Audi, VW, Skoda, Volvo, Ford, and Land Rover. The range includes OEM-grade pump motors, system-specific Haldex oils, and oil filters matched to each generation. Orders over £150 qualify for free shipping. Every product listing includes vehicle compatibility data so you can confirm fitment before ordering, which means no wasted trips and no incorrect parts on the bench.
FAQ
What is the best Haldex diagnostic tool for passenger vehicles?
For most workshops, a professional aftermarket scanner with confirmed bi-directional Haldex support covers the majority of passenger AWD diagnostic needs. OpenHaldex-S3 is the best option for live telemetry and map editing beyond standard scanner capability.
Do I need a special cable for trailer ABS diagnostics?
Yes. The JDC108A adapter cable is required for Jaltest CV to communicate fully with Haldex trailer ABS modules. Most multi-brand platforms need a generation-specific adapter cable regardless of software capability.
Can a basic OBD-II scanner diagnose Haldex faults?
A basic OBD-II scanner reads generic powertrain codes but cannot access the Haldex AWD module directly. You need a tool with manufacturer-specific or enhanced CAN bus access to retrieve Haldex fault codes and live data.
Why does my AWD warning light appear without a real Haldex fault?
Mismatched tyre diameters and faulty ABS wheel speed sensors both generate speed differentials that the Haldex ECU logs as coupling faults. Always check tyre sizes and sensor outputs before diagnosing the coupling itself.
How much does a professional trailer ABS diagnostic platform cost?
Professional trailer ABS diagnostic stacks including software licences and adapter cables typically cost between $3,000 and $7,000, depending on the platform and the breadth of vehicle coverage required.
