The most reliable signs of Haldex clutch wear are a loss of rear-axle engagement on slippery surfaces, a clunk or grinding noise at low speed and tight turns, and intermittent slipping at the rear that comes and goes with temperature. If you drain the Haldex oil and find metal particles, that confirms clutch pack wear. Some of these symptoms overlap with pump or wiring faults, so a scan tool check is worth doing before you order parts.
TL;DR:
- Worn Haldex clutch packs often cause rear-axle disengagement, especially on slippery surfaces, and may present with metal particles in the oil.
- Noise symptoms include harsh clunking, grinding during tight turns, and whining that varies with road speed, not engine speed.
- Diagnosing the fault requires live data logging of clutch pressure, pump current, and system temperature to distinguish between pump issues and clutch wear.
- Contamination and neglect, such as dirty oil or missed services, accelerate clutch wear and can lead to pump and seal failures.
- Proper diagnosis prevents unnecessary part replacements, as symptoms often mimic other driveline faults like worn mounts or CV joints.
Table of Contents
- What you will feel, hear and see
- Diagnosing the fault: codes, live data and pump tests
- Why clutch packs wear: contamination and neglect
- Inspection checklist before blaming the Haldex unit
- Service, rebuild or replace: choosing the right path
- Service schedule and habits that prevent premature wear
- Where this guidance comes from
- The checklist matters more than the part number
- Get the parts that match your diagnosis
- Sources
- FAQ
What you will feel, hear and see
Clutch pack wear rarely announces itself with one dramatic failure. It shows up as a pattern of small, repeatable annoyances that get worse under load or heat.
The clearest sign is a change in how the rear axle behaves when the front wheels lose grip. On a wet roundabout, gravel drive or icy junction, a healthy Haldex system sends torque to the rear almost instantly. A worn clutch pack cannot build or hold that clamping force, so the car behaves like a front-wheel-drive vehicle when it should be pulling from all four corners, a pattern consistent with the way coupling wear typically first appears as reduced rear engagement.
A second cue is noise, and the type of noise matters:
- A clunk or harsh grab from the rear when pulling away from a standstill or accelerating out of a corner.
- A grinding or rubbing sound during tight, low-speed turns, often mistaken for a CV joint or wheel bearing.
- A whirring or whining that rises and falls with road speed rather than engine speed, pointing towards the coupling rather than the drivetrain.
These noises differ from tyre roar or brake squeal in one key way: they change with steering angle and load, not with braking or straight-line speed. If the sound only appears when you turn the wheel sharply at walking pace, suspect the coupling before the brakes.
Heat sensitivity is another giveaway. Clutch packs that have lost friction material often work acceptably cold and then slip or bind once the fluid warms up after 10 to 15 minutes of driving. This intermittent behaviour is why a five-minute test drive around the block sometimes shows nothing, while a longer, mixed-surface drive reveals the fault clearly, a point echoed in guidance on identifying coupling wear.
To check safely, find a wet grass verge, gravel car park or loose gravel track (never a public road with other traffic nearby) and accelerate gently while turning. Listen for the clunk, feel for the rear stepping out or failing to engage, and note whether the symptom appears only after driving for a while. For a deeper look at isolating specific sounds, our noise troubleshooting guide walks through common culprits.
Pro Tip: Record a short video with audio when the symptom appears. It helps a technician or forum diagnose the fault faster than a verbal description.
Diagnosing the fault: codes, live data and pump tests
A structured diagnostic sequence stops you replacing an expensive coupling when the real fault is a £30 filter or a failing pump. Work through these steps in order.
- Read stored fault codes from the AWD or Haldex control module with a scan tool that supports the system. Codes relating to valve faults or clutch mechanical failure point towards the coupling itself, while pump mechanical or stator codes usually point towards the pump rather than the clutch plates, a distinction covered in detail in Haldex fault documentation.
- Capture live data during a test drive that reproduces the symptom: clutch pressure in bar, pump current and system temperature. A command that calls for high pressure while the measured pressure stays low usually means internal hydraulic leakage or worn friction plates rather than a pump problem.

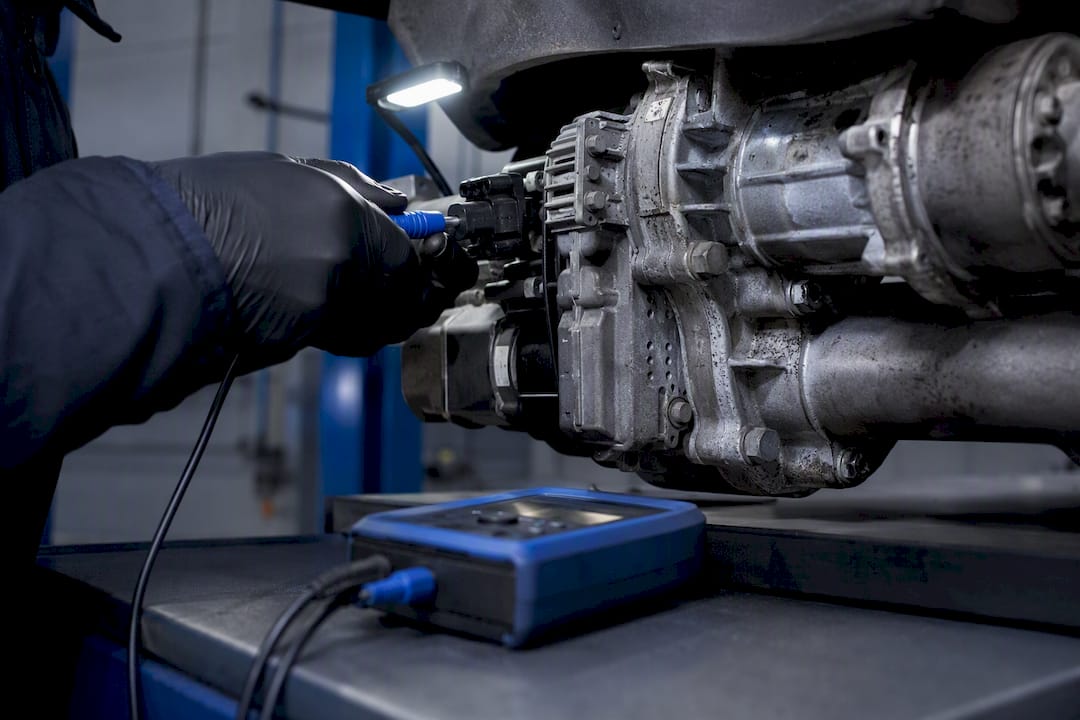

- Command the pump directly with a scan tool and listen for its operation. A healthy pump has a steady, even hum; a pump that sounds weak, intermittent or unusually loud is often the actual fault rather than the clutch pack.
- Bench test the pump motor for resistance. Many Haldex pumps test in the region of 5 to 8 ohms, a range widely used as a diagnostic reference for pump condition. A reading well outside that band, along with wiring and power checks, points to an electrical fault rather than clutch wear.
- Repeat the road test on a loose or wet surface with the scan tool logging, and save the data. A mechanic working from a recorded log rather than a verbal description of the symptom can confirm clutch wear far more quickly.
Live data checks are the single most useful diagnostic step because they separate a pressure problem (pump, leak, valve) from a friction problem (worn plates), a distinction that a simple road test cannot make on its own, as detailed in guidance on spotting coupling wear. For a full walk-through of the scan tool workflow, see our technician’s diagnostic guide, and for the bench test procedure specifically, our pump testing guide covers the steps in more depth.
Pro Tip: Always log data during a drive that actually reproduces the fault. A clean log from a fault-free drive tells you nothing.
Why clutch packs wear: contamination and neglect

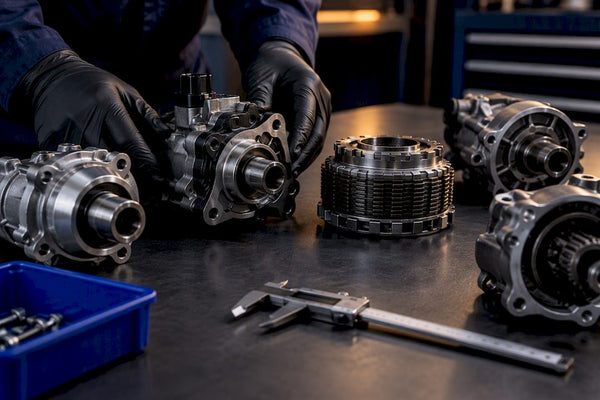

A Haldex coupling clamps a stack of steel and friction plates together hydraulically to send torque to the rear axle. As the friction material wears thin, the stack cannot generate the same clamping force at the same pressure, so engagement becomes weaker, slower or inconsistent even when the pump and electronics are working correctly.
- Friction material thins with use, reducing the grip between plates and lowering the torque the coupling can transmit before it starts to slip.
- Contaminated fluid accelerates this wear, since debris suspended in old oil acts like grinding paste between the plates, a mechanism described in analysis of Haldex pump and clutch failure.
- Clogged filters starve the system of clean oil flow, which both speeds up clutch wear and raises the load on the pump.
- Pumps and seals often fail as a knock-on effect, since a pump working against dirty fluid or a partially blocked filter runs hotter and wears faster than one fed with clean oil.
Missed services do not just shorten clutch life. They tend to cascade: contaminated oil wears the plates, which increases hydraulic demand, which stresses the pump, which eventually fails too. Our guide on what causes Haldex failure covers this chain in more detail.
Inspection checklist before blaming the Haldex unit
Several driveline faults produce clunks and vibrations that mimic clutch pack wear. Rule these out first, since they are cheaper to fix and easy to miss.
- Check engine and transmission mounts for play, cracking or perished rubber, since a loose mount can produce a clunk on acceleration that has nothing to do with the coupling.
- Inspect CV joints and the driveshaft centre bearing for wear, since a worn joint or bearing often produces a similar low-speed grinding or knocking noise during turns.
- Look for visible fluid leaks at the output shaft seal and coupling housing, which point towards a seal failure rather than clutch wear.
- Drain a small sample of Haldex oil and check for metal flakes or a dark, gritty texture. Clean oil with no visible debris suggests the fault lies elsewhere; metal particles strongly support clutch pack wear.
Our coupling problems checklist sets out this same sequence with more detail on each check.
Service, rebuild or replace: choosing the right path
Once you have confirmed the symptom points to the Haldex system rather than mounts or CVs, the fix depends on what the diagnostics show.
- A fluid and filter service usually suffices when the oil is old or contaminated but pressure readings and pump current are otherwise normal; expect improved engagement within the first few drives after the basic setting is performed.
- Friction plate replacement is needed when metal is visible in the drained oil, or when clutch pressure stays persistently low despite a fresh service and a healthy pump.
- Pump or ECU repair is the fix when live data shows the system commanding pressure correctly but the pump fails to build it, or when pump resistance readings fall outside the normal range.
- Full coupling replacement is justified only when the housing, internal splines or multiple components are damaged beyond a plate and pump repair.
Costs vary widely depending on which of these paths applies, and our Haldex service cost guide sets out realistic ranges for parts against labour. If you are not confident reading live data yourself, a professional diagnosis before ordering parts avoids paying for a coupling replacement when a filter and fresh oil would have solved it.
Pro Tip: Never replace a coupling based on noise alone. Confirm with live pressure data first, since mounts, CVs and pumps all produce similar symptoms.
Service schedule and habits that prevent premature wear
A consistent maintenance routine is the cheapest way to avoid the failures described above.
- Service the Haldex fluid and filter roughly every three years or around 30,000 miles, a preventative interval that many technicians use to limit contamination before it damages the clutch pack, as noted in guidance on coupling wear prevention.
- Use only the specified Haldex oil, not a generic automatic transmission fluid, since the coupling relies on specific friction and viscosity properties that generic ATF does not reliably match.
- Always perform the pump basic setting after a service, since skipping this step leaves the system running on stale calibration data even with fresh fluid.
- Replace or clean the filter or strainer at every service, since a blocked filter undoes much of the benefit of fresh oil.
- Keep service records and any diagnostic logs, since a documented history makes it far easier to prove wear patterns if a fault develops later.
Where this guidance comes from
The site supplies pumps, oils, filters and service kits for Haldex-equipped vehicles across various automotive brands, selectable by brand and by Haldex generation.
- The catalogue is organised to help DIY owners match parts to the repair path their diagnostics indicate, whether a filter and oil change or a full friction plate set.
- Guides such as what causes Haldex failure and how Haldex diagnoses faults are written to sit alongside the checks in this article.
- For readers planning a pump swap themselves, our pump replacement walk-through lists the parts needed alongside the steps.
The checklist matters more than the part number
The biggest mistake owners make with Haldex symptoms is jumping straight to “replace the coupling” the moment the rear axle feels wrong. Clunks, whines and slipping are genuinely ambiguous signals, shared by worn mounts, tired CV joints, a failing pump and an actual worn clutch pack. Skipping the diagnostic sequence in favour of a guess is how people end up paying for a full coupling replacement when a filter and fresh oil, or a £150 friction plate set, would have solved it.
The conventional advice to “just service it every few years” is sound but incomplete. Servicing on schedule prevents most contamination-driven wear, but it will not catch a pump that is already failing electrically, which is why the live data step matters as much as the calendar. If you take one thing from this guide, prioritise the pressure and pump current logs over the noise itself. Noise tells you something is wrong, data tells you what.
— Mindaugas
Get the parts that match your diagnosis
Once your checks point to worn friction plates rather than a pump or wiring fault, the part you need is a friction plate set matched to your Haldex generation, not a full replacement unit. We stock the 106792 friction plates for GEN4 & GEN5 Haldex as a 10-disc set, the BorgWarner 107883 steel friction plate set with 15 discs for 4th and 5th generation systems, and the BorgWarner 106792 1.8mm OEM friction plates, also a 15-disc set.
- Plates and the correct Haldex oil keep clamping force consistent, which is needed to hold engagement reliably.
- Pumps, oils, filters and complete service kits are available from the site for the same repair.
- Orders over £150 get free shipping, and our pump testing guide is there if you need help confirming the fault before you buy.
Browse the full Haldex parts catalogue to find the right kit for your vehicle and generation.
Sources
- Spot AWD Coupling Wear: VW/Audi Haldex Unit Guide
- Guide To Generation 4 Haldex Trouble Shooting - Haldex Parts and ECU Repairs by Auto Fault Finder
- What Is Haldex Pump Failure? - Mechalex
FAQ
How do I know if my Haldex is failing?
The clearest signs are a loss of rear-axle engagement on slippery surfaces, a clunk or grinding noise during low-speed turns, and intermittent slipping that worsens once the system warms up. A scan tool check of clutch pressure and pump current confirms whether the fault sits in the clutch pack or the pump.
What are the symptoms of worn-out clutch plates?
Worn clutch plates typically cause weak or delayed rear-axle engagement, a harsh clunk when pulling away, and metal flakes visible in drained Haldex oil. Persistently low clutch pressure during live data logging, despite a healthy pump, also points to worn plates.
How can I tell if my clutch packs are bad?
Bad clutch packs usually show up as reduced torque transfer to the rear wheels under acceleration on loose or wet surfaces, along with grinding or binding noises in tight turns. Draining the oil and checking for metal debris, alongside a live data pressure log, gives the clearest confirmation.
Can I drive with a bad clutch plate?
Driving with worn clutch plates is possible in the short term, since the car will simply behave more like a front-wheel-drive vehicle, but it puts extra strain on the pump and increases the risk of further internal damage. It is best to diagnose and address the fault before it cascades into a pump or coupling replacement.
