Haldex evolved from a reactive mechanical hydraulic clutch (Gen I to II) to proactive pre-tensioning (Gen III to IV) and finally to a compact electro-hydraulic Gen V unit with an integrated ECU. Each jump changed response times, service intervals and parts compatibility. Check your generation before ordering anything, because Gen V often needs a complete integrated assembly rather than individual components.
TL;DR:
- The latest Gen V Haldex unit is lighter and more compact, replacing multiple components with an integrated assembly that is less serviceable but more reliable.
- Identifying your generation requires checking the pump housing and part number, with Gen V featuring a sealed, integrated design lacking external accumulators or filters.
- Maintenance intervals and common faults vary significantly across generations, with Gen I and II prone to pump whine and clogged filters, while Gen V issues often involve leaks and ECU faults.
- Suitable parts, such as filters and pumps, must match your generation to avoid degradation of performance due to incompatible hydraulic tolerances or fluid requirements.
- Upgrading or repairing should consider age, symptoms, and part numbers, with new assemblies generally more costly but necessary for reliability in Gen V applications.
Table of Contents
- Haldex generation differences explained: Gen I through Gen V
- How to identify which Haldex generation is fitted to your car
- Maintenance, common faults and parts compatibility across generations
- Why generation-correct parts and fluids actually matter
- Repair or replace: a short decision checklist
- Where to buy generation-correct Haldex parts and service kits
- Sources
- FAQ
Haldex generation differences explained: Gen I through Gen V
Every Haldex generation solves the same problem, getting drive to the rear axle when the front wheels slip, but each one does it with different hardware and a different philosophy about when to engage.
Gen I, introduced in 1998 on the Audi TT and related platforms, is a purely reactive system. A pump driven by the propshaft builds hydraulic pressure only after it detects a speed difference between the axles, then squeezes a multi-plate clutch pack. Technical training material describing the coupling notes the pump activates at roughly 400 rpm, with an electronic control unit reading signals from the ABS and engine management to decide clutch pressure. It works, but there is always a lag between slip starting and torque arriving at the rear wheels.
Gen II, arriving around 2004, kept the reactive principle but refined the hardware. Volkswagen’s own service documentation for that model year describes a proportional hydraulic valve, increased oil volume and a switch to maintenance-free fleece filters, which extended service intervals and made the pump assembly easier to replace as a unit rather than stripping it down.
Gen III is where the behaviour genuinely changes. It introduced pre-tensioning, meaning the system could pre-engage the clutch before wheel slip actually occurred, based on inputs like throttle position and steering angle. That shift from reactive to proactive control gave manufacturers room to calibrate the coupling for handling characteristics rather than just slip correction, tuning it for sportier response or better low-traction behaviour depending on the vehicle.
Gen IV pushed that proactive control further into software, with tighter integration between the Haldex ECU and the vehicle’s stability and traction systems. Some manufacturer calibrations branched into variants like XWD and electronically controlled limited-slip differentials, built on the same core proactive architecture but tuned differently.
Gen V is the biggest structural departure of the lot. BorgWarner, which now produces the unit, describes it as a lighter, more compact coupling that removes the accumulator, solenoid valve and separate filter entirely, replacing them with a centrifugal overflow valve built into an axial piston pump, paired with an electro-hydraulic clutch actuator and an integrated ECU. Fewer separate parts means fewer failure points, but it also means less that can be serviced piecemeal. BorgWarner’s design brief for GenV was as much about packaging, cost and calibration flexibility as raw response speed, and the unit has found its way into performance applications like the Lamborghini Huracán, which says something about how much confidence the platform inspires at the sharp end of the market.
How to identify which Haldex generation is fitted to your car
You do not need a diagnostic laptop to work this out. A few physical checks and one part number will usually settle it.

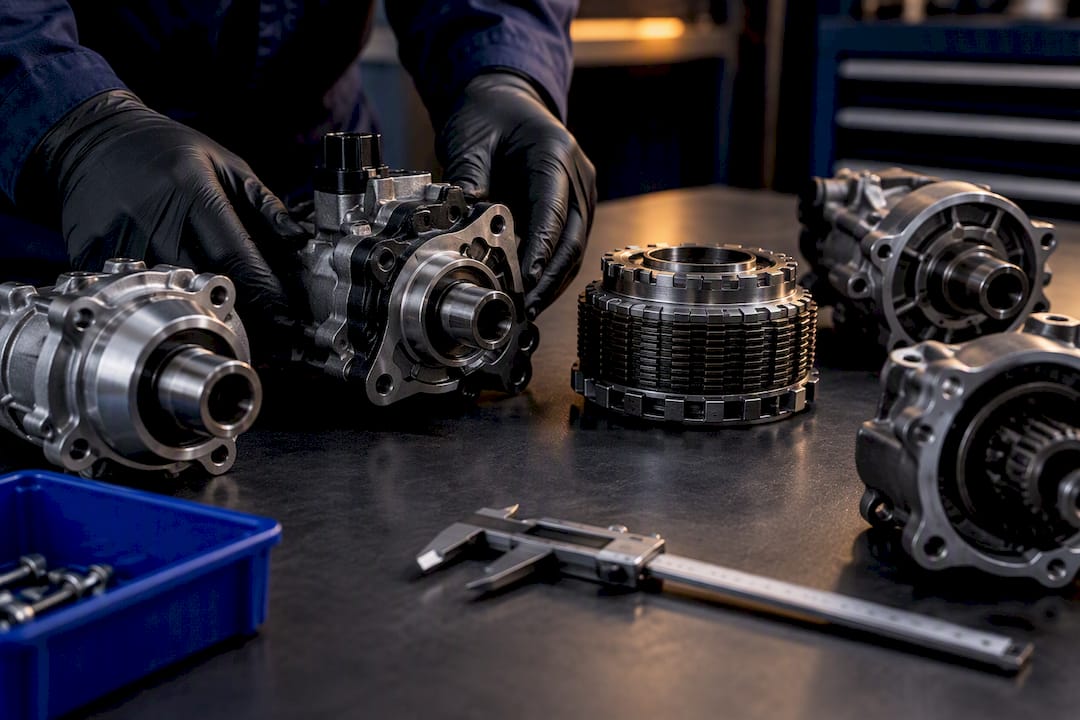

- Look at the pump and rear differential housing. An external accumulator, a visible solenoid valve, and a separate replaceable filter housing point to Gen I, II or III. If those components are absent and the assembly looks like one sealed unit, you are almost certainly looking at Gen V.
- Check the casting and part number stamped on the pump body. This is the only fully reliable method, since trim levels and regional builds can vary even within the same model year.
- Cross-reference against your vehicle’s model year, keeping in mind Gen I ran roughly from 1998, Gen II from around 2004, Gen III and IV through the following decade, and Gen V appearing in more recent performance and premium platforms. Treat these as rough windows, not guarantees, because option packages and market-specific builds shift the boundaries.
- Use the VIN or chassis number for a definitive lookup if the physical inspection is ambiguous, and photograph the pump housing, any stamped numbers and the connector layout before contacting a parts supplier. Haldexparts’ own generation identification guide walks through this in more depth if you want a second reference point.
Maintenance, common faults and parts compatibility across generations
Service needs shift a lot between generations, and treating them all the same is how owners end up with the wrong filter or a pump that will not physically fit.
Published intervals vary by manufacturer and market, so always check the relevant self-study programme or owner documentation rather than assuming one figure applies across the board. Haldexparts’ own breakdown of generation-specific service intervals is a useful starting reference before you book a service.
Common fault patterns by generation:
- Gen I and II: pump whine, delayed engagement under load, and clogged filters that starve the pump of clean fluid.
- Gen III and IV: similar symptoms plus occasional ECU communication faults as the software layer got more complex.
- Gen V: leaks from the integrated actuator housing and ECU faults that, because everything is combined, tend to mean replacing the whole assembly rather than a single part.
Parts compatibility follows the same pattern. Friction plates and some pump nose components often interchange between adjacent generations, particularly Gen I and II, which is why pump nose replacement is such a common repair path on older units rather than a full assembly swap. Gen V is a different story: its integrated housing generally rules out mixing components with earlier generations or even between different Gen V applications.
Pro Tip: Before ordering anything, pull the part number off the physical unit rather than relying on your service history. Haldex parts get superseded and revised more often than most owners expect, and a number that matches your build sheet from new may not match what is actually bolted to the car today.
Why generation-correct parts and fluids actually matter
Hydraulic tolerances are not interchangeable across generations. Pump nose wear profiles differ, filtration standards changed between Gen I and Gen II, and Gen V’s centrifugal overflow valve depends on fluid specifications the earlier reactive pumps were never designed around. Fitting the wrong oil viscosity or a filter rated for an older generation can quietly degrade clutch engagement long before it throws a fault code.
Haldexparts stocks generation-matched components including the pump nose replacement kit for first and second generation pumps, the Gen V oil pump for Audi R8 applications, and the Gen V oil pump for Porsche fitments, each documented against its specific part number.
Repair or replace: a short decision checklist
Age, mileage and symptom severity should drive the decision, not just cost. A worn Gen I or II pump nose is often a sound repair; a leaking Gen V actuator usually is not, given how integrated the housing is. Verify part numbers before committing either way, and treat delayed engagement or ECU warnings as reasons to inspect now, not later.
— Mindaugas
Where to buy generation-correct Haldex parts and service kits
Haldexparts exists precisely because matching the wrong pump or oil to the wrong generation is an expensive, avoidable mistake, not a rare one. As a parts supplier, competitive pricing and free shipping on orders over a certain amount can be important considerations when choosing components, especially since newer assemblies typically cost significantly more than older filter kits.
If you are working on an older reactive-generation coupling, the pump nose replacement kit for 1st and 2nd generation Haldex pumps covers the most common wear point without forcing a full unit swap. For Gen V applications, Haldexparts lists the Gen V oil pump for the Audi R8 and the Gen V oil pump for Porsche models, both matched to exact OEM part numbers rather than generic fitment guesses. Not sure which generation you are dealing with? Confirm it against your pump housing and part number, then browse the full catalogue of pumps, oils and filters or get in touch if the number on your unit does not match what you expected to find.
Sources
For deeper verification, Volkswagen’s SSP 206 and SSP 333 cover model-specific service detail, BorgWarner’s GenV press material explains the newest architecture, and Wikipedia’s Haldex Traction entry gives a consolidated generational timeline.
- BorgWarner press release — GenV AWD coupling (Arctic drive event)
- SSP 206 — Four‑Wheel Drive with Haldex Coupling
- Haldex Traction — Wikipedia
FAQ
How do I know what generation Haldex I have?
Check the pump and rear differential housing for an external accumulator, solenoid valve and separate filter, which point to an earlier reactive generation, versus a sealed integrated unit typical of Gen V. The part number stamped on the pump body is the definitive check, and Haldexparts’ generation identification guide walks through what to photograph if you need help matching it remotely.
What cars have Gen IV Haldex?
Gen IV appeared across various Volkswagen Group platforms during the proactive control era, with some manufacturers building variants like XWD and electronically controlled limited-slip differentials on the same core architecture. Exact fitment varies by model year and trim, so confirming against your vehicle’s part number remains the reliable route.
What cars have Gen V Haldex?
Gen V, built by BorgWarner, appears in premium and performance platforms including the Audi R8 and certain Porsche models, as well as vehicles like the Lamborghini Huracán. Its compact, integrated design suits vehicles where packaging space and weight are tightly constrained.
What year did Audi switch to Haldex?
Audi first used Haldex coupling on the original TT in 1998, marking the introduction of Gen I. Later Audi models moved through subsequent generations as Haldex refined the system, with Gen V appearing in more recent high-performance applications like the R8.
Can I fit a later-generation Haldex pump to an older car?
Generally no, particularly with Gen V, since its integrated housing was not designed for retrofitting onto earlier reactive-generation architecture. Some components, like friction plates and certain pump nose parts, do interchange between adjacent earlier generations such as Gen I and II, but always verify against the exact part number before assuming compatibility.
