Yes, you can service a Haldex coupling without VCDS. The oil drain and refill is a mechanical job: plugs, a pump or syringe, the right fluid and a level car. What the scan tool adds is convenience and proof. It lets you cycle the pump to top the unit off, confirm oil temperature, and check that the system works afterwards. Without it you need a little more patience, a careful eye on the generation of your coupling, and a plan for the jobs that really do need software.
This guide separates the two. It covers what you can do with hand tools, what still calls for a scan tool, how to work without a lift, and what to do if a pump relearn will not run.
TL;DR
- A Haldex oil change is a mechanical job and can be done without VCDS. The scan tool is a convenience for topping off and a check afterwards, not a requirement for the drain and fill.
- Identify your Haldex generation first. Gen 3, Gen 4 and Gen 5 differ, and the Gen 5 clutch has no oil filter, so one generic procedure does not fit every car.
- Wrong fluid and mixing up the Haldex plugs with the final drive plugs are the two mistakes that cause real damage.
- You can work without a lift using ramps or a jack with proper stands, but only if the car is level and secure.
- Pump replacement, fault diagnosis and some relearns do need a scan tool or a suitable workshop.
Table of Contents
- What VCDS actually does during a Haldex service
- Jobs you can do without a scan tool
- Jobs that still call for a scan tool
- Identify your Haldex generation first
- Choosing the right fluid
- A step-by-step approach without VCDS
- Servicing a Haldex without a lift
- Pump replacement, relearn and what to do when it will not run
- What you need at home
- How often to service
- Our perspective
- Get the right parts for your generation
- FAQ
- Sources
What VCDS actually does during a Haldex service
VCDS is a diagnostic program for VAG cars. In a Haldex service it does three jobs, and none is the oil change itself.
It runs the pump while the car is stationary. Diagnostic scan tools let a technician cycle the pump remotely with the vehicle still, which makes topping off efficient. Without that, you rely on gravity, a pump-style fill tool or a manual fill, and you take more care to get the level right.
It reads oil temperature. Haldex service procedures set a narrow temperature window for checking and setting the level, because the fluid expands as it warms. A scan tool shows the temperature from the car’s own sensor. Without one, you work on a car that has sat cold overnight and has not been driven, and you do not check the level after a drive. Follow the temperature figure in the factory-style procedure for your generation rather than a rule of thumb from a forum.
It verifies the result. Automotive Tech Info’s Gen IV overview notes that the system can be assessed with VCDS, a multimeter or an oscilloscope with a current clamp, and recommends scanning the complete vehicle and saving the scans during service or repair. That is good practice, but it is a check, not a prerequisite for pouring in fresh oil.
Our own guide to how Haldex diagnoses faults explains what the controller monitors and why a scan before and after is worth the effort when you have access to one.
Jobs you can do without a scan tool
These are realistic with ordinary tools and a careful approach:
- Draining and refilling the Haldex oil through the drain and fill plugs.
- Visually inspecting the unit, the plugs and the area around the pump for leaks or seepage.
- Measuring the oil that comes out: colour, smell, metallic or black particles. Our page on Haldex oil symptoms explains what judder, warning lights and black sludge usually point to.
- Basic electrical checks on the pump with a multimeter. Tomorrow’s Technician notes that basic mechanical inspection and electrical testing can be done without the scan tool, while component activation and controller communication checks need one.
- On older couplings with an accessible filter and pump, removing and cleaning or replacing those parts.
For the pump itself, our step-by-step guide on how to test a Haldex pump shows what a multimeter can and cannot tell you.
Jobs that still call for a scan tool
Be honest about the limits. These tasks are where skipping the software costs you:
- Activating the pump or other components on command, which is how most technicians confirm the pump runs and builds pressure.

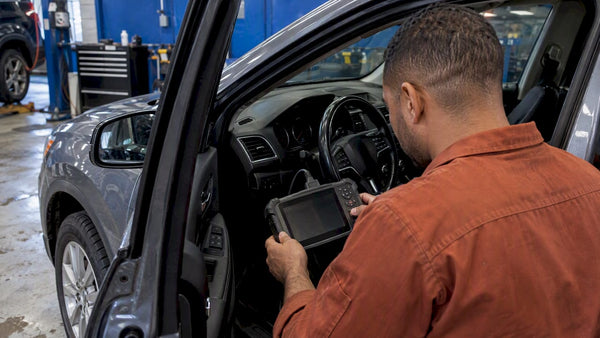

- Reading and clearing fault codes. A traction control light or an AWD warning after the service needs a code read to know whether it is a leftover or a live fault.
- Adaptation or relearn after replacing a pump or controller, on cars that require it.
- Diagnosing a fault you cannot find by inspection. The Tomorrow’s Technician article makes the same point for electronic AWD systems generally: communication with the controller and component activation are part of proper diagnosis.
If you only plan to change the oil, none of this blocks you. If you plan to replace the pump, budget for access to a scan tool, whether your own, a borrowed one or a workshop for the final step.
Identify your Haldex generation first
This is the step people skip, and it matters more than the tools. Liqui Moly’s U.S. technical information says the correct Haldex generation must be identified before service. Its illustrated procedure concerns a Gen 5 clutch without an oil filter, and it notes that Gen 3 and Gen 4 systems differ.
In practice that means:
- Which parts you need depends on the generation: oil only, oil plus filter, or oil plus pump and filter.
- Plug positions and the way the unit is filled differ between generations.
- The fluid spec is not the same across the range.
Our Haldex generation identification guide shows how to tell them apart by model, year and the unit itself. Once you know, our guide to matching the right part removes the guesswork from the order.
Choosing the right fluid
Using the wrong fluid is one of the quickest ways to damage a coupling. Haldex units use a specific fluid, not general gear oil, and the right one depends on the generation. Our article on VW Haldex oil types walks through the three matching fluids and which fits which generation.
For Volvo applications, we stock the genuine Volvo AOC Haldex transmission oil in a 1000 ml bottle. Check the part number against your car before you order, and buy a little more than the stated capacity so you can fill to the level and not run short.
A step-by-step approach without VCDS
The exact sequence depends on your generation, so treat this as the shape of the job and follow the procedure for your unit.
- Confirm the generation and gather parts. Fluid, new sealing washers or plugs where the procedure calls for them, and a filter or pump if your generation has one and it is due.
- Start with a cold car. Let it stand long enough for the unit to reach ambient temperature. Do not take a test drive just before the job, since you cannot read the oil temperature without a scan tool.
- Get the car level and secure. See the next section. A tilted car gives a wrong fill level.
- Identify the Haldex plugs. This is the critical step. The final drive or differential sits close by with its own plugs. Confusing them is a serious mistake that can lead to catastrophic damage. If you are unsure, stop and check with a photo of your specific unit. Our drain plug removal guide shows which plug is which and how to deal with a stubborn one.
- Loosen the fill plug first. If you cannot open the fill plug, you must not drain the unit, because you will not be able to refill it.
- Drain into a clean tray. Look at what comes out. A little darkening is normal for used fluid; metal flakes, burnt smell or thick sludge are not.
- Refill through the fill hole. For the Gen 4 procedure, refill until the oil starts to drip from the fill hole, which is the level reference. A fluid pump or a syringe with a hose makes this far easier than a funnel.
- Refit the plugs with fresh washers where specified and clean the area so you can spot any leaks later.
- Take a short drive and recheck for leaks. Without a scan tool you cannot verify the level against temperature, so keep an eye on the unit over the next few days.
No scan tool means no pump cycling, so the unit may take a little extra oil in practice after the pump has run for the first time. That is why a careful recheck after a few miles of driving and a cooldown is worth the extra half hour.
If your Gen 4 has a filter
Gen 4 couplings can have a filter in the system, and the fluid alone does not clean it. A service that changes oil but leaves a clogged filter shortens the benefit. Liqui Moly also warns that sludge and clutch debris can cause precharge-pump problems, which is the reason many technicians replace the filter with the oil. Our article on the 30,000–50,000 km coupling service lists exact part numbers for VW and Audi applications.
If your Gen 5 has no filter
The Gen 5 clutch has no oil filter in the illustrated Liqui Moly procedure, so there is nothing to replace, but the oil still ages. Skipping the filter step does not mean skipping the service.
Servicing a Haldex without a lift
The Haldex unit sits at the rear axle, and the plugs are reached from underneath. A lift makes it comfortable, but it is not required. What you need is a level, stable car.
Ramps are the simplest option for a front-engined AWD car. They keep the car level, and the rear wheels stay on the ground, though that can reduce access at the rear axle. Check that the ramps are rated for your car’s weight and that the front-wheel drive wheels sit fully on them.
A jack with stands gives more room. Lift the rear of the car on a solid, flat surface, place stands under the jacking points described in the owner’s manual, and lower the car onto them. Never rely on the jack alone. Do not work under a car supported only by a jack, a wooden block or a brick stack. Give the car a firm shove before you get underneath, and keep a wheel on the ground nearby as a backup if you can.
Level matters for the fill. If you lift only one end or one side, the oil level reading is unreliable. Work on level ground, and keep the car horizontal front to back and side to side. If you cannot get it level, wait for a better setup, because the level hole is your only gauge.
Mind the space. Skid plates and under-trays on many AWD cars need removing for access. Allow time and keep the fasteners together in a tray.
Keep the work clean and safe. Wear eye protection. Oil that drips onto hot exhaust parts can smoke, so let the exhaust cool completely, which is also what you want for a cold fill. Contain used oil and take it to a recycling point.
Pump replacement, relearn and what to do when it will not run
Replacing the pump is a bigger job than an oil change, and it is where a scan tool matters. One thing worth knowing is that the relearn or adaptation step is not always available. Owners with older Audi TT models have reported a pump replacement where the basic settings offered no option for the relearn. If that happens:
- Check you have the right generation and the correct control module access. The menu options depend on the car and on the tool and software version.
- Check the basics first. A pump that does not run, a blown fuse or a poor connection can all stop the process. Our guide on the pump fuse and 10A test shows how to prove a fuse fault with VCDS.
- Test the pump current. Our page on clutch wear symptoms explains what the pump current tells you about the clutch pack.
- Take the car to a workshop with the right software if the relearn still will not start. It is a cheaper step than guessing, and it avoids driving with a fault that the controller has not been told about.
If you are replacing a pump, note that some 1st and 2nd generation units rely on a small wear part. We sell AWD pump nose replacement tips for those pumps, and for Gen 5 cars such as the Audi R8 we list the Gen 5 oil pump 0D4906271A.
What you need at home
| Item | Why you need it | Needed without VCDS? |
|---|---|---|
| Correct Haldex fluid | Right spec for your generation | Yes |
| Ramps or jack and stands | Safe, level access | Yes |
| Hand tools for the plugs | Drain and fill plugs, under-tray fasteners | Yes |
| Drain tray and clean rags | Collect and inspect old oil | Yes |
| Fluid pump or syringe with hose | Fill through the side hole | Yes |
| New washers or plugs | Reliable sealing | Where specified |
| Filter or pump (generation dependent) | Replace worn parts | Depends on generation |
| Multimeter | Basic pump and fuse checks | Useful |
| Scan tool | Cycle pump, read codes, relearn | Optional for oil only, needed for pump work |
How often to service
A commonly quoted interval is every 20,000 to 40,000 miles or two to three years, shorter for towing, hard driving or extreme conditions. Treat that as a guide and follow your manufacturer’s schedule for your model. The reasoning behind a short interval is that fluid sold as “lifetime” does not keep its properties indefinitely, and the clutch wear that builds up in it ends up in the system.
Signs that the system needs attention include delayed AWD engagement, noises, judder or a warning light. Do not wait for a fault if the car has an unknown history: change the oil and look at what comes out.
Our perspective
We talk to DIY owners and workshops every week, and the pattern is consistent. The people who get into trouble are rarely the ones without VCDS. They are the ones who did not identify the generation, grabbed general gear oil, or opened the wrong plug. The tool matters far less than the preparation.
Our advice: do the oil change at home if you are comfortable under a car, treat the plug identification as the main safety step, and keep a scan tool in reach for after the job or for any pump work. If a code or a relearn turns up, get it read properly rather than driving on and hoping. A Haldex that is serviced on time is a cheap system to own. One that is ignored is not.
— Mindaugas
Get the right parts for your generation
We supply OEM-grade Haldex pumps, oils, filters, ECUs, control units and complete service kits for Audi, VW, Ford, Land Rover, Volvo, Škoda, Seat, Opel, Saab and Vauxhall, selectable by brand and by Haldex generation, with product details to help you match the part. Workshops and fleets can also order in bulk, and orders over £150 ship free.
Browse the full range on haldexparts.co.uk and pick your brand and generation to see the matching service parts.
FAQ
Can I change Haldex oil without VCDS?
Yes. The drain and fill is mechanical, and many owners do it with hand tools. A scan tool helps by cycling the pump for topping off and by showing the oil temperature, so without one you work on a cold, level car and recheck the level after a short drive.
How do I service a Haldex without a lift?
Use rated ramps or a jack with stands on firm, level ground. The car must be level for the fill level to be right, and you should never work under a car held only by a jack.
Which mistakes damage a Haldex during a DIY service?
The two big ones are using the wrong fluid and opening the final drive plugs instead of the Haldex plugs. Identify your generation and the plug locations before you loosen anything.
Do I need a scan tool after replacing a pump?
Often, yes. Some cars need a relearn or adaptation, and a scan tool also lets you read codes and confirm the pump runs. If the relearn option is missing, check the fuse, the connection and the generation, then use a workshop with the right software.
