The Haldex pump fuse usually sits in one of four places: the interior dash fusebox on the driver’s side, the boot or cargo area fusebox, the engine bay fuse panel, or an inline connector near the rear differential. Fuse numbers differ by make, model and year, so check your fusebox lid or owner’s manual before pulling anything.
TL;DR:
- The Haldex pump fuse location varies by vehicle make and generation, typically found in the dash fusebox, boot fusebox, engine bay, or near the differential connector.
- Always verify fuse positions against the printed diagram on your fusebox lid and cross-reference with the owner’s manual for accurate identification.
- A fuse that repeatedly blows often indicates wiring issues or moisture ingress rather than a faulty pump, making thorough wiring inspection essential before replacing the fuse.
- Visual or continuity testing of the fuse, combined with checking electrical wiring and performing an OBD-II scan, can prevent unnecessary pump replacements and identify root causes.
- Confirm your vehicle’s specific Haldex generation and part requirements before ordering OEM-grade replacement parts, as similar-looking pumps may not be interchangeable across models.
Table of Contents
- Common physical locations to check for the Haldex pump fuse
- Step-by-step: how to find and test the Haldex pump fuse safely
- Fuse identification: ratings, numbers and why forum positions may not match your car
- If the fuse keeps blowing or the pump does not run: quick diagnostic checklist
- Publisher resources and proof points
- Where to buy replacement Haldex parts and tips from the publisher
- Technician perspective: common pitfalls and time-saving tips
- Useful references for diagnostics and repair
- FAQ
Common physical locations to check for the Haldex pump fuse
Where the fuse actually lives depends heavily on which platform you’re working on, and on which Haldex generation your car uses. Rather than guessing, work through these locations in order of likelihood for your vehicle family.
- Interior dash fusebox (driver’s side): common on many VAG group cars (Audi, VW, Škoda, Seat), usually behind a small panel near the driver’s knee or under the steering column trim.
- Boot or cargo area fusebox: frequent on Audi and some VW models, tucked behind a side panel or under the boot floor liner.
- Engine bay fusebox: typical on Ford models and some Land Rover Freelander 2 variants, found near the battery or bulkhead under a hinged plastic cover.
- Under-car inline connector at the diff: found on some early Haldex generations where the pump wiring runs through a sealed plug rather than a dedicated fuse.
The publisher’s DIY finder guide walks through fusebox access points for many of these models with photos, which is worth a look if your car isn’t behaving like the examples above. Land Rover Freelander 2 owners in particular often find their Haldex circuit protected inside the engine bay box rather than the cabin, which trips up anyone assuming it will match a VAG layout.
Some first and second-generation Haldex systems predate the use of a dedicated pump fuse altogether. On these, the pump draws power through a connector that can corrode or work loose, producing symptoms identical to a blown fuse even though there’s nothing to test in a fusebox.
Pro Tip: Photograph the fusebox lid diagram with your phone before removing anything: moulded numbers and print fade over time, and you’ll want the reference later.

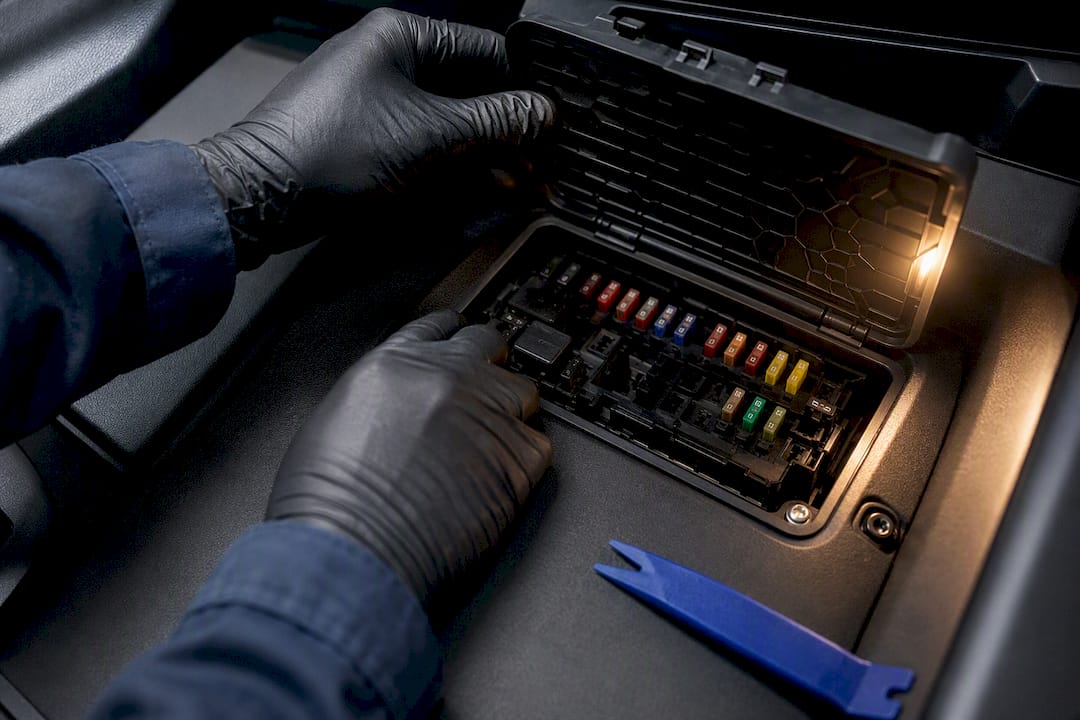

Step-by-step: how to find and test the Haldex pump fuse safely
Before touching any electrical component, switch off the ignition and remove the key. If you need to get underneath the car to check a connector near the differential, use axle stands rather than relying on a jack alone.
- Locate the relevant fusebox: dash, boot or engine bay, depending on your model.
- Remove the cover carefully, noting any clips that can snap if forced.
- Find the printed diagram on the inside of the lid, or the moulded numbers next to each fuse slot.
- Identify the fuse matching your Haldex pump circuit using the diagram, not a number quoted online.
- Remove the fuse with the plastic puller usually clipped inside the fusebox, or a pair of fine pliers if none is provided.
- Inspect the fuse visually against a light source for a broken filament.
- If it looks intact, confirm with a multimeter set to continuity mode or a simple test lamp across the terminals.
A blown fuse typically shows a scorched or snapped metal strip inside the plastic housing, sometimes with visible discolouration around the break. A fuse that looks fine but fails a continuity check should still be treated as faulty.
Before fitting a replacement, note down the fuse’s position number, its amperage rating printed on the fuse body, and any symptoms you noticed beforehand, such as an AWD warning light or unusual noise. This record matters if the new fuse blows again and you need to explain the fault pattern to a technician.
- Always replace like for like: matching amperage, never a higher-rated fuse to “solve” repeated blowing.
- Keep the old fuse until the repair is confirmed, in case you need to compare it against the replacement.
Pro Tip: A cheap test lamp is often more useful than a multimeter for a quick pass/fail check, since it needs no settings and shows a dead circuit instantly.
Fuse identification: ratings, numbers and why forum positions may not match your car
Owners commonly report their Haldex pump fuse sitting at a 7.5A rating, though the exact position number varies enormously between models and production years. Forum threads that state “it’s fuse 17” or “check fuse 47” are describing one specific car, not a universal standard.
The only reliable way to confirm the correct fuse is to read the diagram printed on your own fusebox lid, cross-checked against the owner’s manual for your specific model and year. Manufacturers occasionally revise fuse allocations mid-production run, which means two cars of the same model built eighteen months apart can have different numbers for the same circuit.
- Check the fusebox lid diagram first, since it reflects your car’s actual build.
- Cross-reference the owner’s manual if the lid diagram is faded or missing.
- Treat forum-reported fuse numbers as a starting point, never a confirmed answer.
- Look for moulded numbers on the fusebox housing itself when the printed diagram is unreadable.
A repeated blown fuse rated at 7.5A frequently points to wiring damage or moisture ingress at the connector rather than a straightforward electrical fault in the pump, according to the publisher’s troubleshooting workflow for this exact scenario. That distinction is worth keeping in mind before you assume the pump itself needs replacing.
If the fuse keeps blowing or the pump does not run: quick diagnostic checklist
A fuse that blows once might be a fluke. A fuse that blows repeatedly is telling you something else is wrong, and replacing it again without checking further usually just wastes another fuse.
Start with the basics before assuming the pump has failed:
- Inspect wiring near the connector for chafing, cracked insulation or heat damage.
- Check connectors for corrosion, especially on cars that see winter road salt or have been driven through deep water.
- Look for signs of water ingress in the fusebox itself, particularly on cars where the boot liner has been removed and refitted.
- Confirm the pump motor turns freely by hand where accessible, since a seized pump draws far more current than a healthy one.
Mechanical and electrical failures behave differently, and that difference helps narrow down the problem. A pump that’s mechanically seized will often cause the fuse to blow immediately on activation, sometimes within a second of the AWD system trying to engage. A wiring short, by contrast, might blow the fuse intermittently depending on how the loom flexes with suspension movement.
An OBD-II scan is worth doing before you replace another fuse. Fault codes relating to the Haldex pump circuit, low system pressure, or a coupling fault give a technician a starting point rather than a guess. The publisher’s technician’s diagnostic guide covers which codes typically point to pump, wiring or ECU issues, which is useful context to have ready if you’re calling a garage.
If you’ve checked wiring, connectors and confirmed the pump isn’t mechanically seized, and the fuse still blows, that’s the point to stop replacing parts yourself and get a proper diagnostic check. Repeatedly swapping fuses on a car with an underlying short risks damaging the wiring loom further or, in rare cases, the body control module feeding that circuit.
Pro Tip: A clamp meter reading current draw at the pump feed before the fuse blows tells you far more than another visual inspection, and it’s the step most DIY repairs skip.
Publisher resources and proof points
There are suppliers offering OEM-grade Haldex pumps, oils, filters and complete service kits across various automotive platforms, with product pages detailing part numbers and generation compatibility to help you find the correct pump for your car.
Mindaugas, the author of this guide, draws on hands-on familiarity with Haldex service kits and generation-specific fitment across the brands HaldexParts supplies.
- The technician’s diagnostic guide explains fault code interpretation for anyone moving past basic fuse checks.
- The 2026 owner’s guide to Haldex failure explains mechanical versus electrical failure patterns in more detail.
- The AWD cargo pumps, oils and filters collection helps you match your Haldex generation to the correct replacement parts.
Between these guides and the product catalogue, a reader can move from “where’s the fuse” to “which pump do I actually need” without leaving the same site.
Where to buy replacement Haldex parts and tips from the publisher
If your diagnosis points to the pump itself rather than a fuse or wiring fault, OEM-grade replacements mapped to specific generations are available, enabling you to order the part that matches your vehicle rather than a generic listing.
- The Haldex Oil pump 5 generation 9P1906271 Porsche is the fifth-generation pump for Porsche applications using this reference.
- The Haldex Oil pump 5 generation 0D4906271A Audi R8 covers the equivalent fifth-generation fitment for the Audi R8.
- The AWD Pump Nose Replacement Tips guide for 1st and 2nd generation Haldex pumps is aimed at earlier pump generations, where the nose section wears rather than the whole unit failing.
Before ordering, confirm your Haldex generation and cross-check against your VIN, since pumps that look similar across model years often aren’t interchangeable. The full range of pumps, oils, filters and service kits is worth browsing if you’re unsure which kit matches your car, and orders over £150 qualify for free shipping.
Technician perspective: common pitfalls and time-saving tips
The biggest time-waster I see is people replacing the pump before checking the wiring and connectors. A corroded plug or a chafed wire produces the exact same symptoms as a failed pump, but costs nothing to inspect and everything to ignore.
Forum-quoted fuse numbers cause more confusion than they solve, mostly because people assume their model year matches a post from three years earlier on a different trim. Always confirm against your own fusebox lid.
A test lamp, a multimeter and a fuse puller cover most diagnostic needs, but a clamp meter is what actually separates guesswork from a confirmed diagnosis. Record the fault symptoms, the fuse rating and position, and any code read before you touch a single component. An OBD-II scan should be your first move, not your last resort, since it often narrows the search before you’ve even opened the fusebox.
— Mindaugas
Useful references for diagnostics and repair
For readers who want to go deeper than this guide, the DIY fuse-location guide and the 7.5A fuse workflow cover access and repeated-failure diagnosis in more detail. For general electrical fundamentals, Mechanicrank’s free diagnostics course explains OBD-II basics clearly, while Rebuild Masters’ alternator guide helps rule out charging faults that sometimes get mistaken for a Haldex pump issue.
FAQ
How do I know if my Haldex pump is bad?
Common signs include an AWD warning light, a fault code referencing the Haldex system, or no rear-wheel engagement when the front wheels lose traction. A confirmed diagnosis needs a continuity check on the fuse plus an OBD-II scan, since wiring faults produce identical symptoms.
Which fuse controls the fuel pump?
The fuel pump fuse is a separate circuit from the Haldex pump fuse and its location and rating vary by model, so check your own fusebox diagram rather than assuming a shared number. Confusing the two is a common mistake when searching generic fuse charts online.
Where is the Haldex fuse located on a Freelander 2?
On the Freelander 2, the Haldex pump fuse is typically found in the engine bay fusebox rather than inside the cabin, differing from many VAG group layouts. Always confirm the exact position against the diagram printed on your own fusebox lid, since allocations can shift between production years.
How do I test the Haldex system?
Start with a visual inspection of the fuse and connectors, followed by a continuity check with a multimeter or test lamp. If the fuse and wiring check out, an OBD-II scan for Haldex-specific fault codes is the next step before assuming the pump itself has failed.
