What does the 2003085 Haldex filter kit include?
The 2003085 is the genuine BorgWarner oil filter kit for the 4th generation Haldex all-wheel-drive coupling, and it is the only part designed to maintain hydraulic fluid cleanliness in these systems. Skip it, and metallic sediment reaches the pre-charge pump, which is an expensive component to replace.
The kit contains:
- One OEM oil filter element (BorgWarner part number 2003085)
- One cap with integrated oil channel
- Two o-rings for a sealed, leak-free assembly
- Two mounting screws
Every component works together to protect the hydraulic circuit. The cap and o-rings are not optional extras; without them, the assembly cannot seal correctly, and fluid pressure drops.
Which vehicles are compatible with the 2003085 filter kit?
The 2003085 fits any Volkswagen Group vehicle running the 4th generation Haldex AWD system. The list covers a wide spread of models and years:
- Audi A1 8X (2010–2014), A3/S3 8P (2009–2013), TT 8J 2.0 (2008–2014), Q3 Gen 1 (2011–2014)
- VW Golf 6 (2010–2013), Golf 7 (2012 onwards), Tiguan (2008–April 2013), Passat B6/B7, Passat CC, Sharan 2, Jetta 6, Beetle, Caddy 2K, T5
- Škoda Octavia 2 (2009–2013), Superb 2 (2008–2015), Yeti (2009–2012)
- Seat Alhambra 7N (2010–2013), Altea/Altea 4 (2009–2015)
Always verify your specific model year and AWD generation before ordering. The Audi TT 8J 3.2 (2006–2010) is a notable exception: early production cars used the 2nd generation Haldex, so the 2003085 applies only from 2008 onwards on that platform.
OEM part numbers and manufacturer details for the 2003085
BorgWarner manufactures the 2003085 at its Hungarian facility. The associated OEM codes recognised across VW Group vehicles include 111358, 114388, 0AY525558, 0BR525010B, and 0BR525554, among others.
One detail that catches many mechanics off guard: the 2003085 does not appear in the official ETKA dealership parts catalogue. Dealerships often assume the filter is non-serviceable, but every car fitted with the 4th generation BorgWarner coupling carries one and it requires scheduled replacement. Genuine parts arrive in BorgWarner-branded packaging with the part number printed without any prefix.
Recommended maintenance intervals for Haldex filter and oil
Independent maintenance experts recommend changing the G060175A2 hydraulic fluid every 30,000km and replacing the 2003085 filter every 60,000km. Miss either interval and metallic particles accumulate, eventually causing total coupling failure.
Pro Tip: The 2003085 filter sits directly in front of the pre-charge pump. Its job is to catch metallic debris before it reaches the pump’s internal components. A blocked or degraded filter means the pump works harder, wears faster, and can fail entirely, taking the coupling with it.
During installation, handle the mounting bushings carefully. They are wider than those found on other Haldex generations and prone to cracking if forced. Clean the mounting bolt threads before refitting, and apply the correct torque to avoid oil seepage around the filter housing.
Related products you need for a complete 4th gen Haldex service
The filter alone is not a complete service. The G060175A2 hydraulic oil is the specified fluid for 4th generation systems, and it must be replaced at every 30,000km interval, while the 2003085 filter should be replaced every 60,000km. You can source a combined oil and filter kit to cover both items in one order.
Additional components worth considering:
- Genuine valve kits and seals for the coupling housing
- OEM o-ring sets if the existing seals show any sign of wear
- Pressure sensors if the system has logged AWD-related fault codes
Buying a full service kit guarantees that every replaced component meets the same specification, which matters when the hydraulic circuit relies on consistent pressure across all parts.
Why source the 2003085 from a trusted UK specialist?
OEM parts carry a manufacturer warranty and are built to the exact tolerances BorgWarner specifies for the coupling. Aftermarket filters vary considerably in quality, and the most common failure point is the internal valve, which must hold hydraulic pressure precisely. A valve that cannot maintain pressure causes the AWD system to disengage under load.
Counterfeit 2003085 filters are a genuine problem. Genuine BorgWarner parts feature a yellowish, textured high-temperature plastic piston with a material code printed on it, and mounting bolts marked with a hardness rating of 8.8. Fakes typically use plain white plastic with no material code and lighter bolts with no hardness marking.
Pro Tip: When your order arrives, check the piston colour against the box background. On a genuine filter, the yellowish tint is visible even in ordinary light. If the piston looks uniformly white, treat it as suspect.
Haldexparts stocks the genuine 2003085 alongside the full range of Haldex service kits for 4th generation systems, with free shipping on orders over £150 and fast UK delivery.

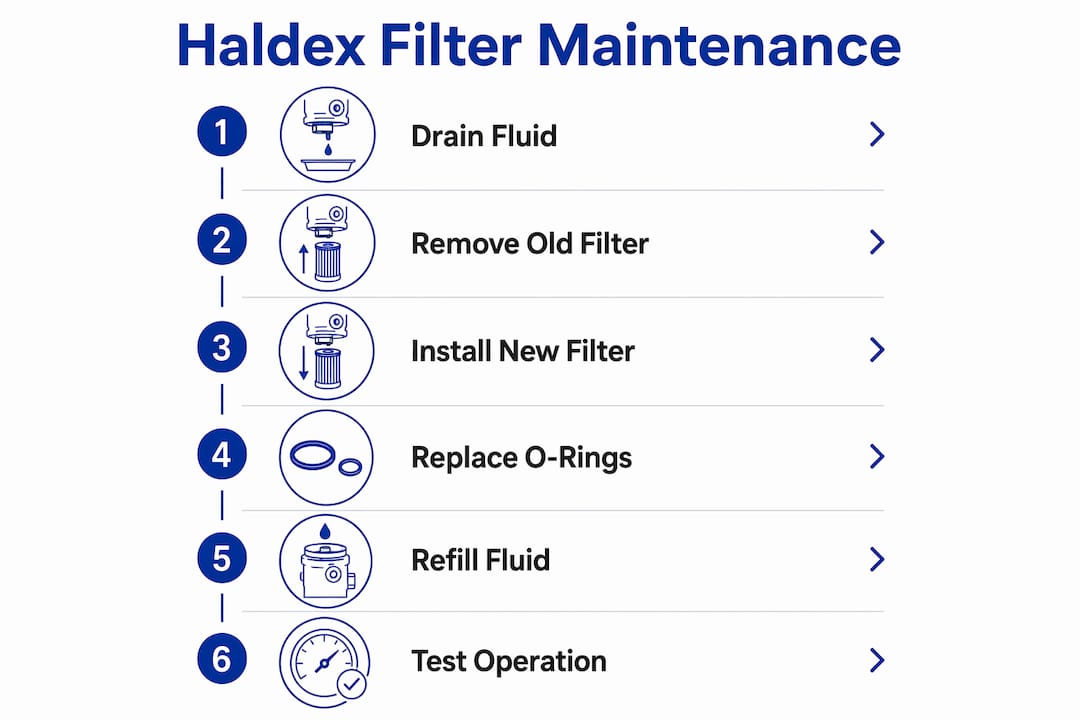

How to install the 2003085 Haldex filter kit
Drain the old hydraulic fluid completely before removing the filter housing. The filter sits on the underside of the Haldex coupling unit, accessible from beneath the vehicle. Remove the two mounting bolts, pull the old cap and filter free, and discard the used o-rings. Fit the new o-rings dry or with a light coating of fresh G060175A2 oil to ease seating. Insert the new filter, refit the cap, and torque the bolts to the manufacturer’s specification. Refill with fresh hydraulic oil and check for leaks with the engine running.
Common issues during filter replacement
The most frequent problem is a cracked mounting bushing, caused by forcing the cap during removal or refitting. If the bushing cracks, oil will seep from the filter housing under pressure. Inspect the bushing before reassembly and replace it if there is any visible damage. A second common issue is cross-threading the mounting bolts, particularly if old thread debris is not cleared first. Clean threads with a tap if necessary before fitting new bolts.
Performance benefits of the OEM 2003085 versus aftermarket filters
Using the genuine OEM filter maintains the hydraulic pressure the coupling needs to engage the rear axle correctly and consistently. Aftermarket filters with inferior valve designs allow pressure to drop, which delays or weakens AWD engagement, particularly during low-speed cornering where the system works hardest. Over time, a filter that cannot hold pressure accelerates wear on the pump and the clutch pack inside the coupling. The cost difference between an OEM filter and a cheap alternative is small compared to a full coupling replacement.
Key takeaways
The 2003085 BorgWarner filter kit is the only OEM-specified filter for 4th generation Haldex AWD systems, and skipping its replacement schedule leads directly to pump and coupling failure.
| Point | Details |
|---|---|
| Filter change interval | Replace the 2003085 every 60,000km; change G060175A2 hydraulic oil every 30,000km. |
| Kit contents | Includes one OEM filter, one cap with oil channel, two o-rings, and two mounting screws. |
| Authenticity check | Genuine BorgWarner filters have a yellowish textured piston and bolts marked 8.8. |
| Wide vehicle coverage | Compatible with Audi, VW, Škoda, and Seat models fitted with the 4th generation Haldex system. |
| OEM versus aftermarket | OEM filters maintain correct hydraulic pressure; inferior valves in cheap alternatives cause AWD disengagement. |
